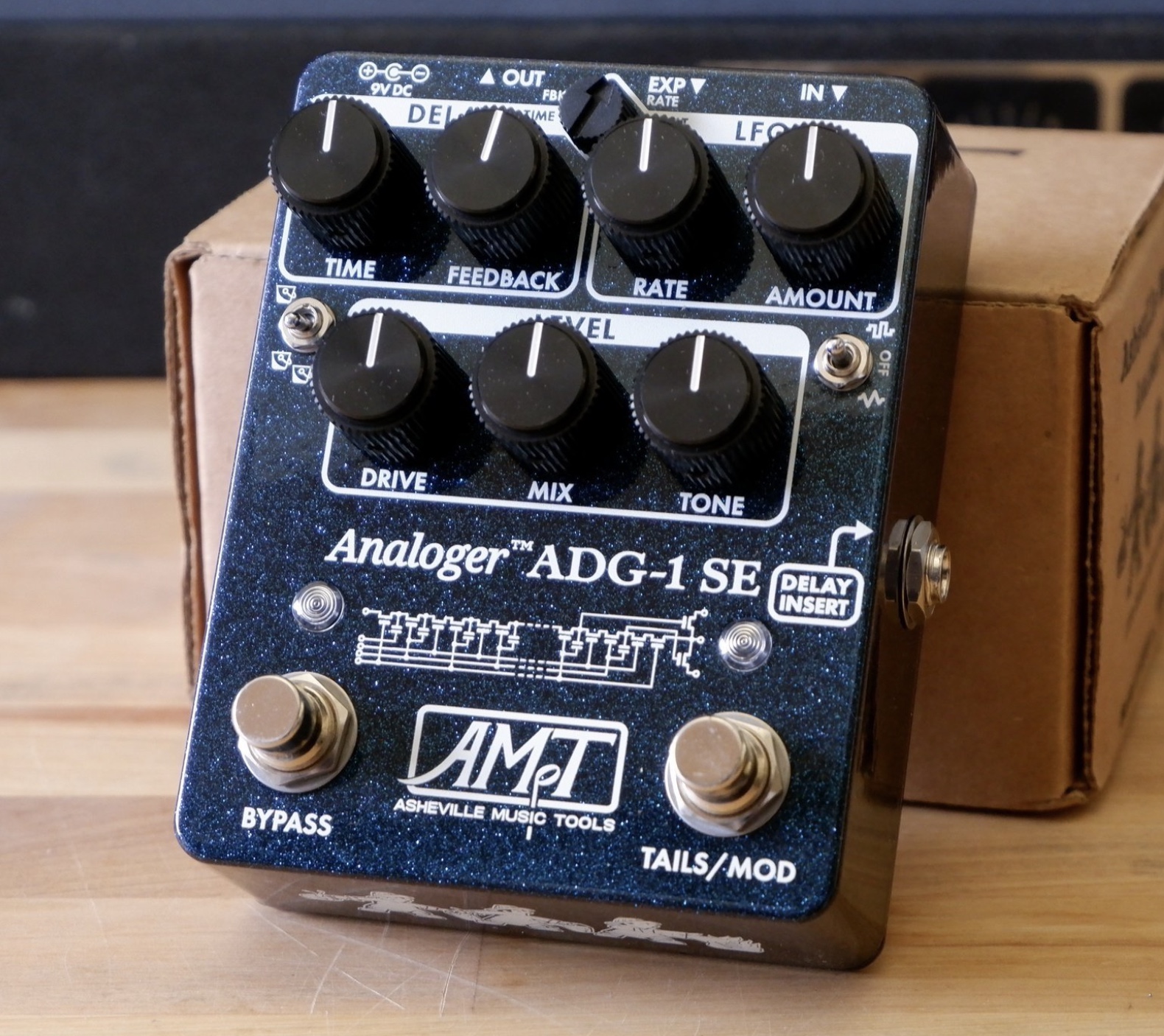

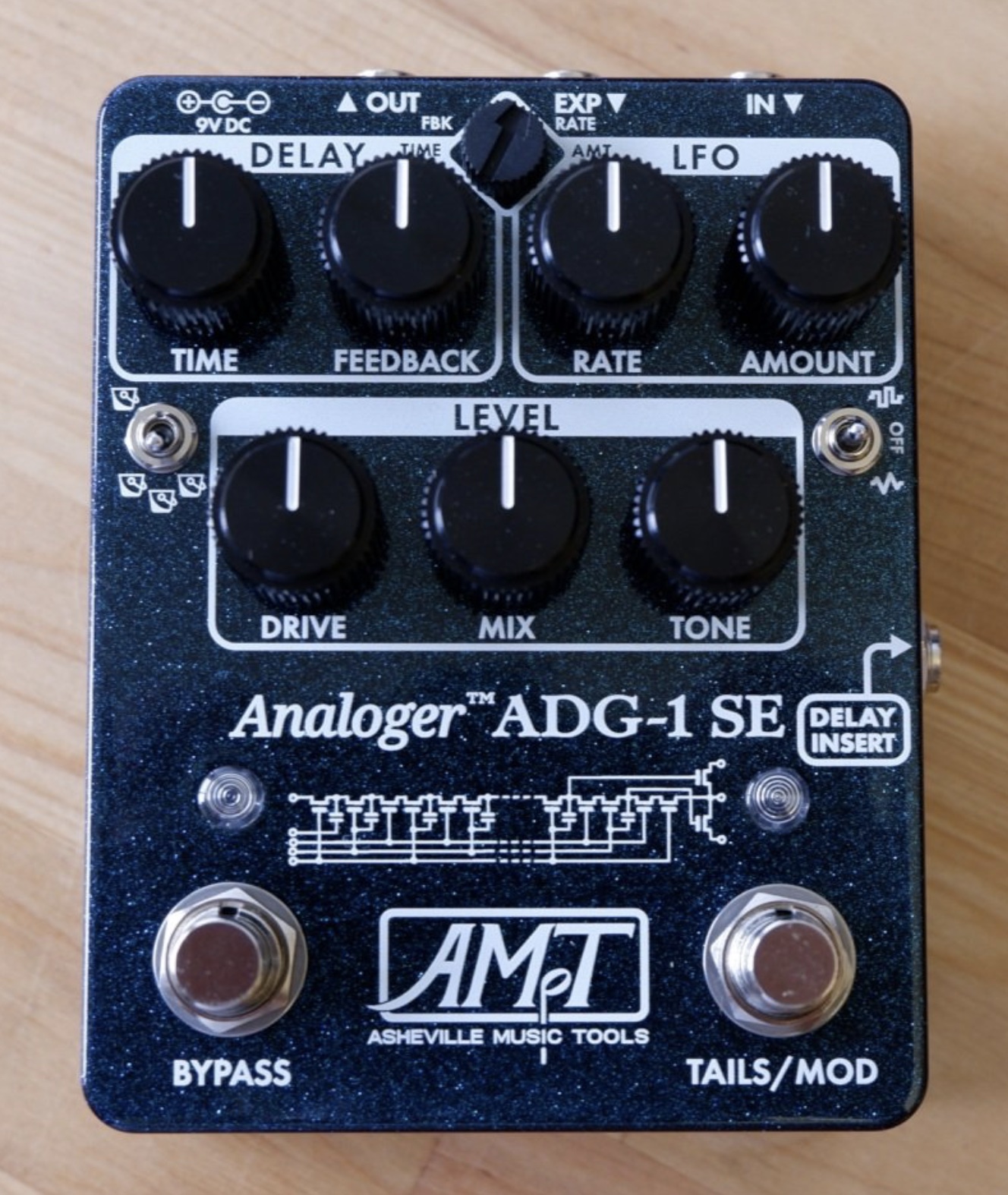

Asheville Music Tools ADG-1 Delay Special Edition

Brands:

$598.00

100% Analog Delay from 16ms to 1.0555s of delay time with a bonus delay insert loop

The ADG-1 is a special edition of the ADG-1 analog delay. It begins with a standard ADG-1 and includes the following hand-made modifications and additions:

  • A 3rd high-voltage Xvive™ analog delay bucket has been added, allowing switching between delay times of 16ms-350ms or 50ms-1.055sec (extendable up to 1.35sec with control voltages or expression pedal)

  • The addition of a TRS insert on the delay loop allowing the patching of effects such as EQ or octave pedals into your delayed signal to successively affect the repeats without changing the dry tone

  • The addition of a center off switch to the LFO module as an upgrade from the early ADG-1 revisions

  • Premium “Guitarry Night” metallic shimmer sparkle finish with a high-durability gloss coating

  • Genuine solid aluminum GØRVA Obelisk knobs

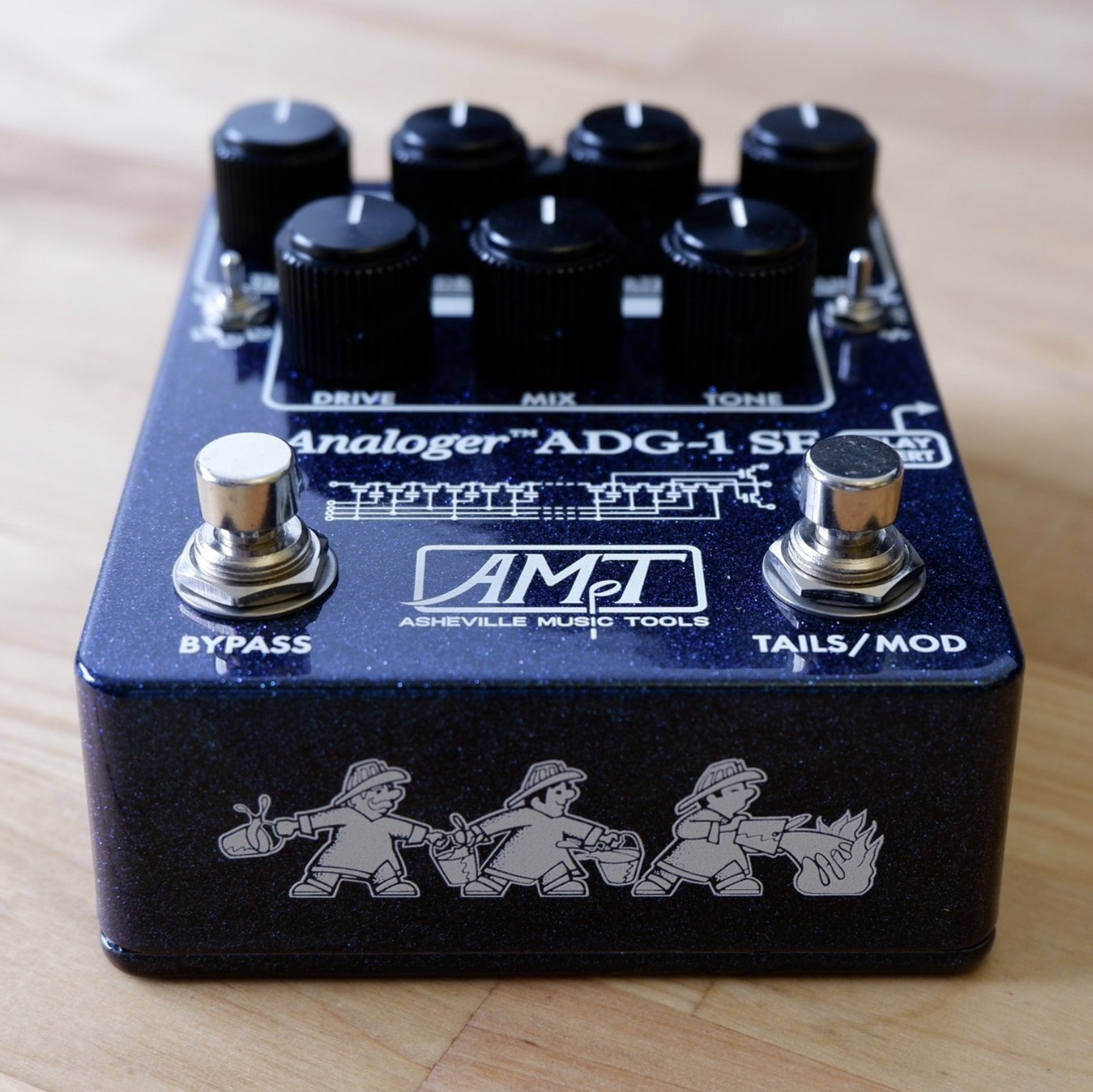

  • Additional side silk screen of the original BBD Bucket firemen.

Electrical Specifications: (subject to change)

  • 100% Analog signal path

  • Switchable true bypass or JFET-buffered bypass with switchable trails

  • Power: 9VDC @ <150mA (90mA Nominal, up to 350mA start up.)

  • Expression / CV input assignable to Time, Feedback, Mod Amount, or Mod Rate (CV range is 0-5V). Ring supplied current limited 5V.

  • Delay time: <50mS – 1050mS Three BBD mode, 17 - 350mS single bucket mode, 1350mS to 38mS (450-13mS) with control voltages or LFO.

  • Input impedance: >1MΩ

  • Output impedance: 1KΩ Max

  • Max input level: +15dBµ (4.3V RMS)

  • Max output level: +14dBµ (3.9V RMS)

  • Maximum drive: >22dB (covers attenuation to gain)

  • Noise Reduction 2:1 broadband with 12dB HF emphasis

Physical Specifications

  • Genuine Hammond™ die-cast aluminum enclosure

  • Dimensions: D=4.90” (12.5 cm), W=3.70” (9.4 cm), H=2.25” (5.8 cm)

  • Weight: 15.5oz (0.440kg)
