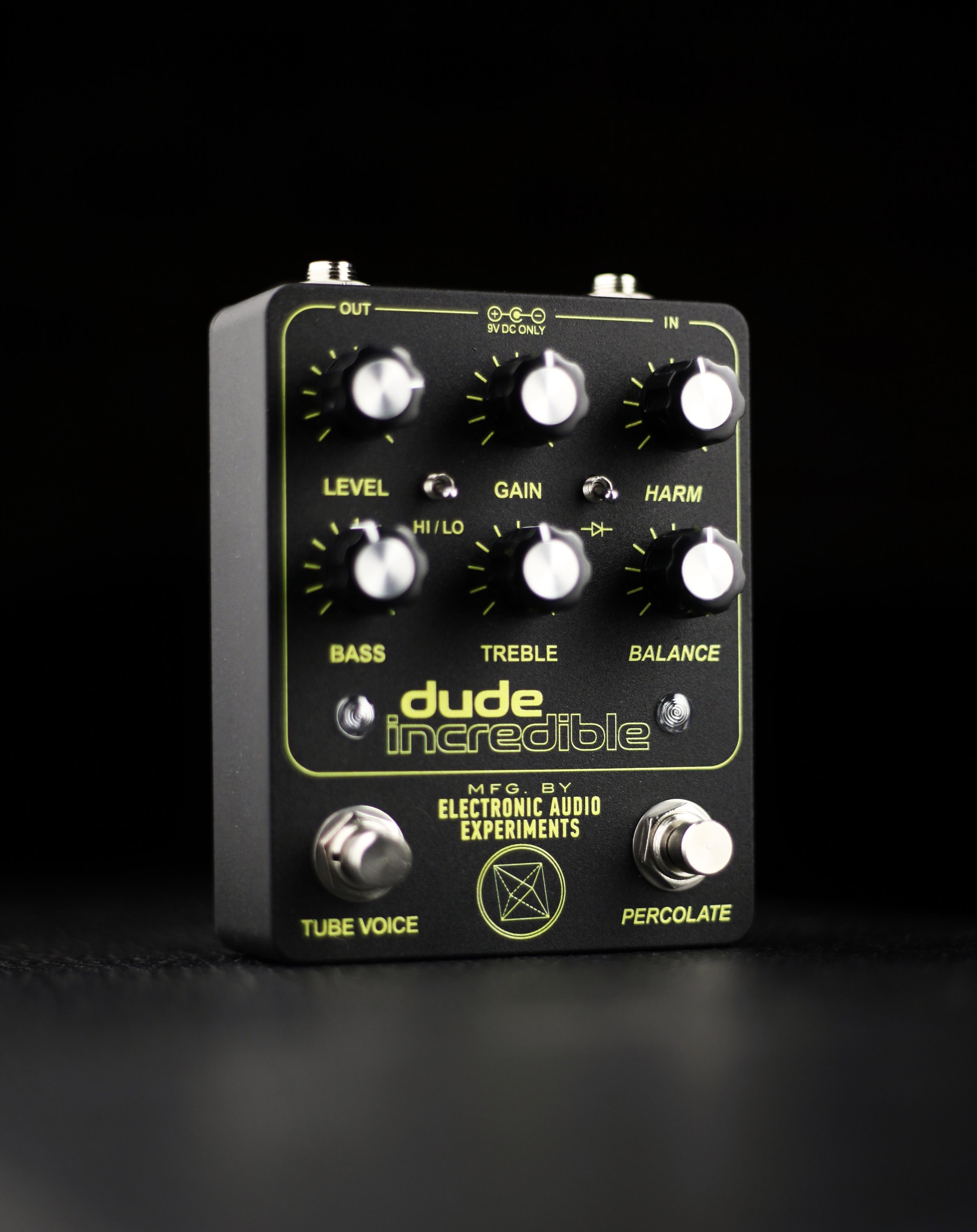

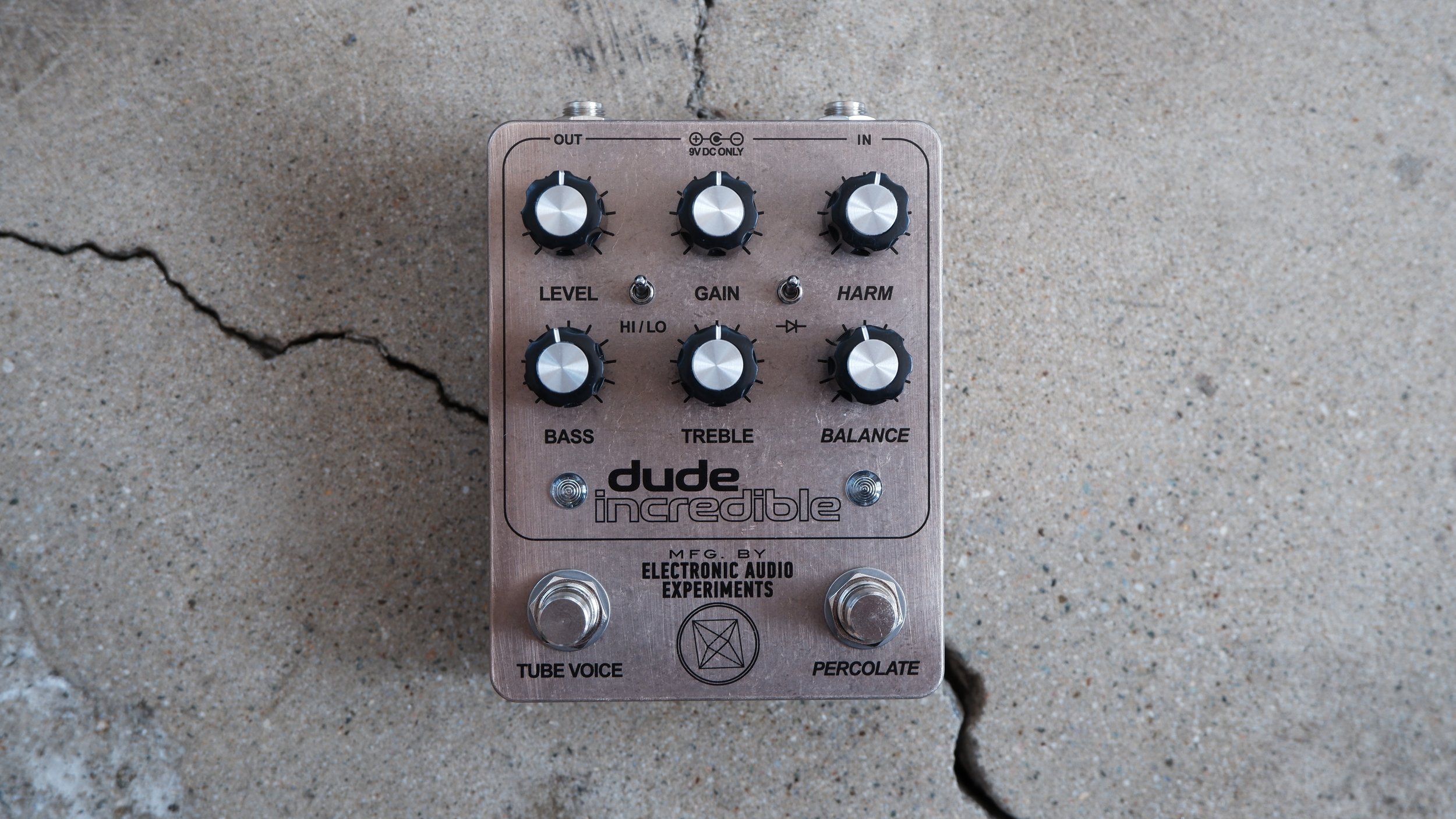

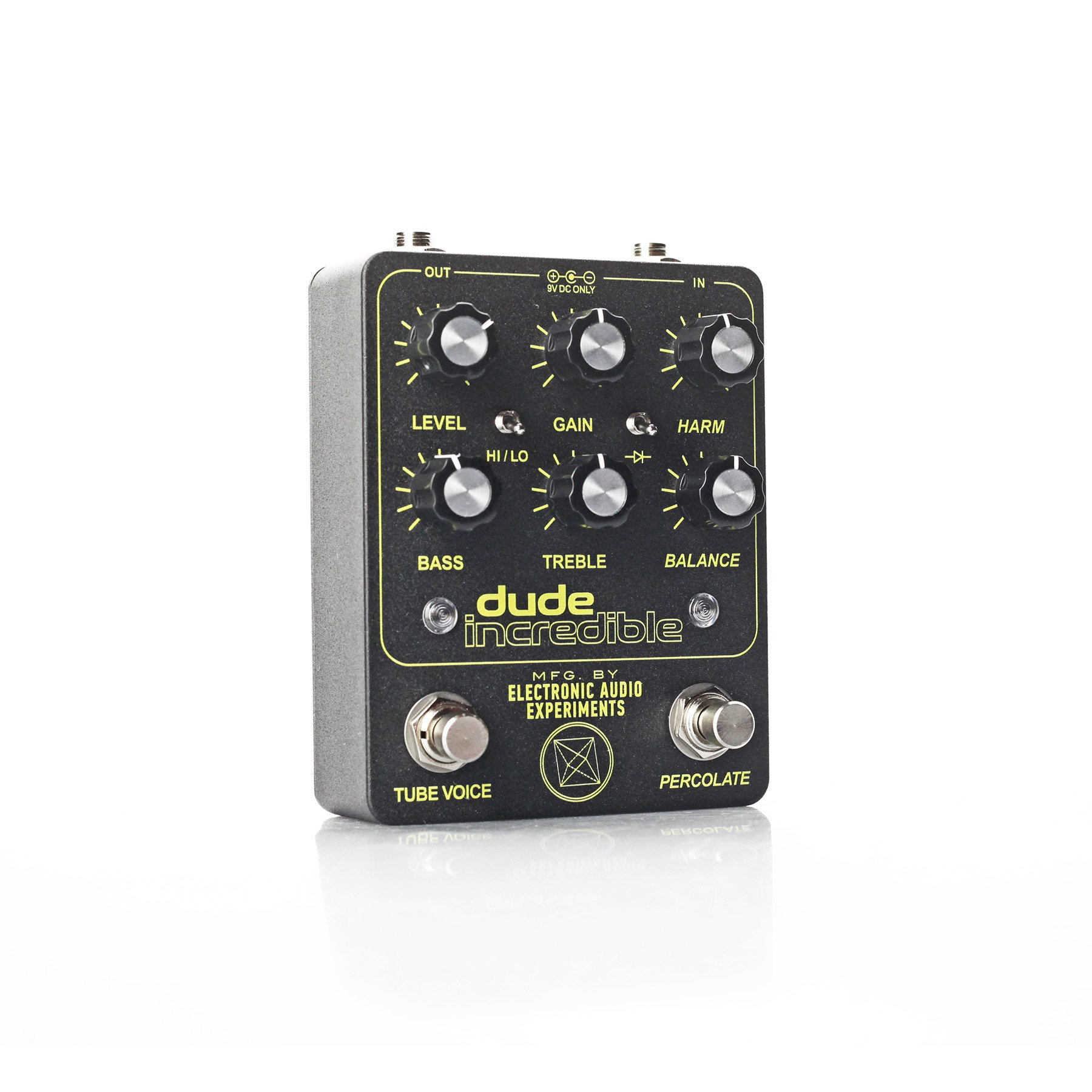

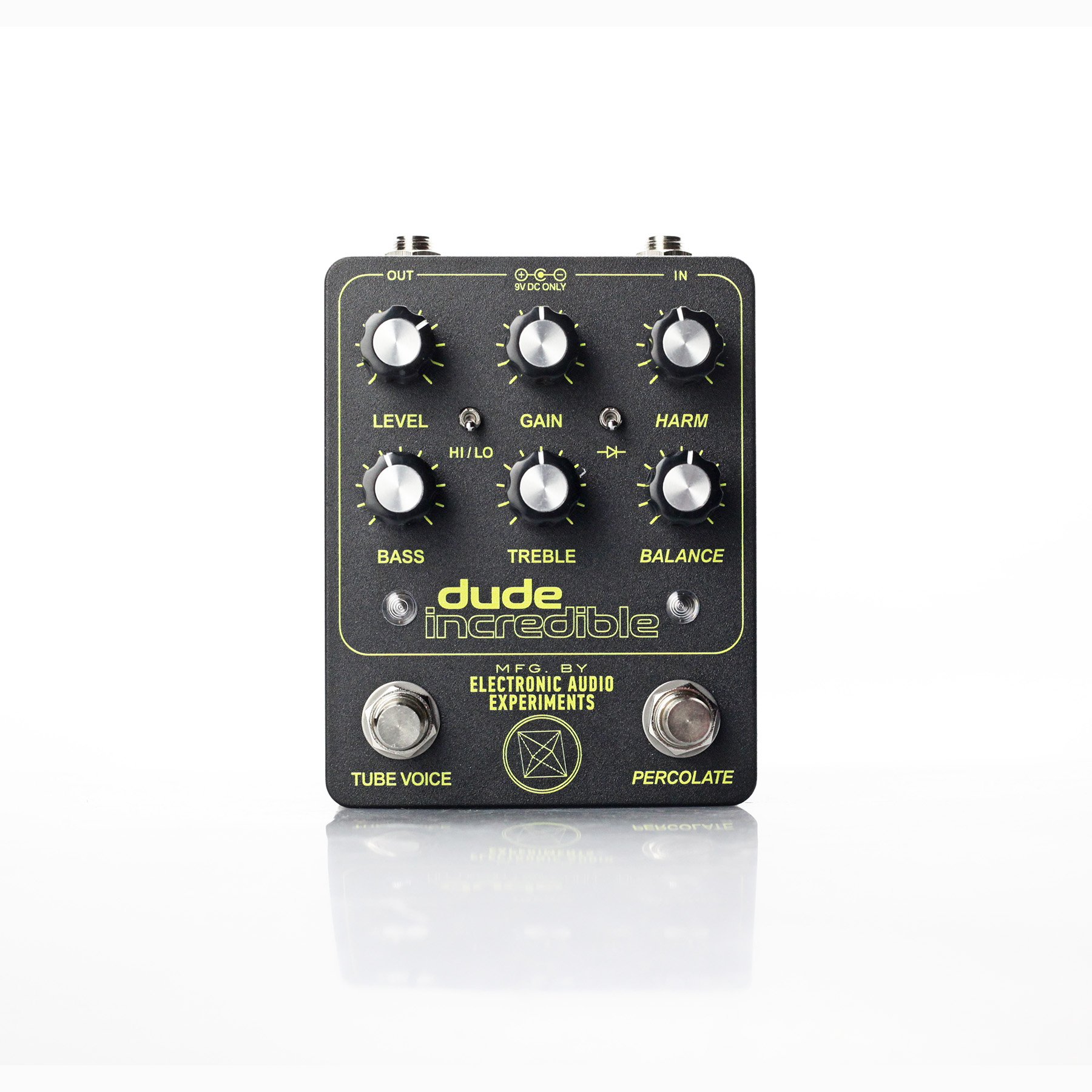

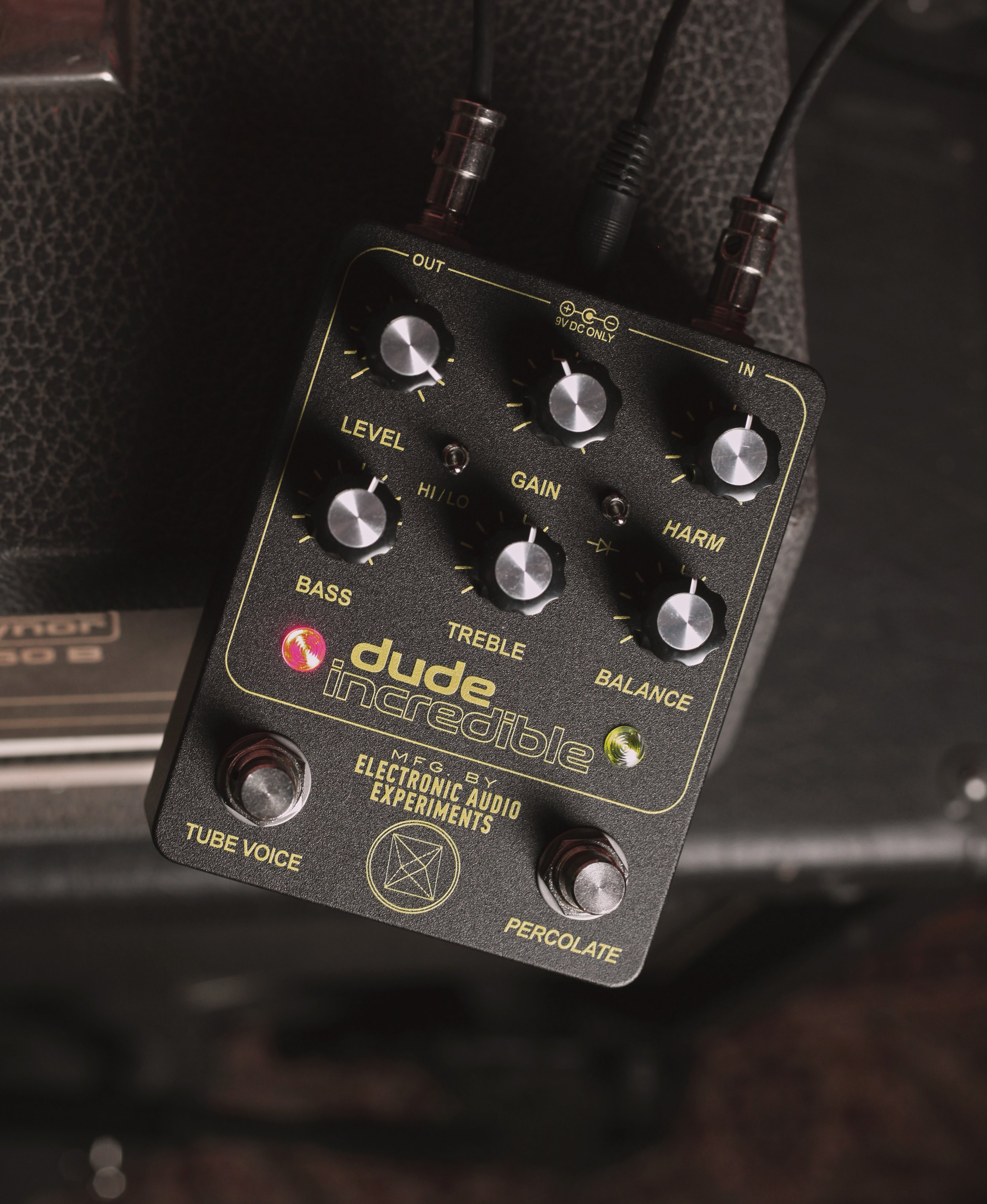

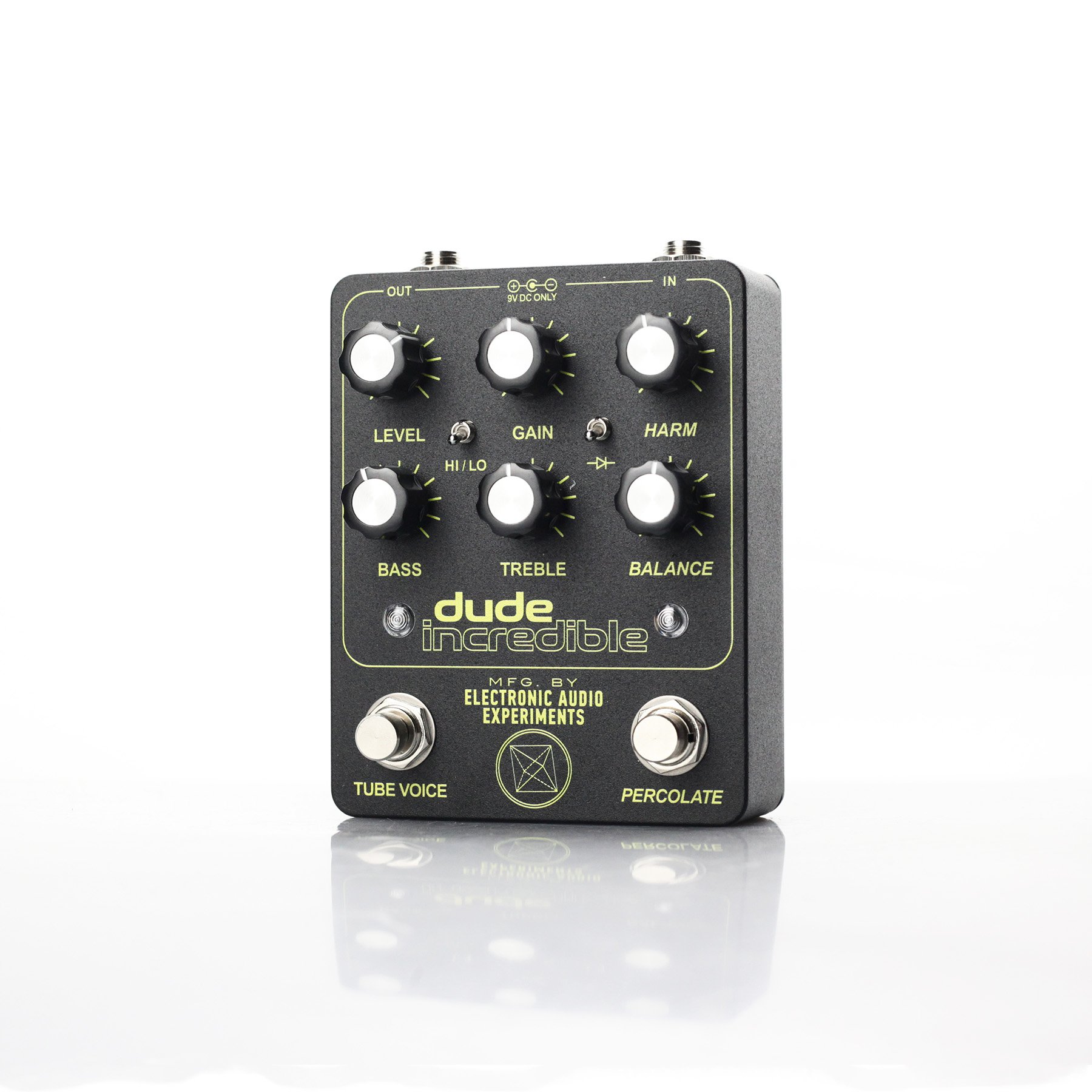

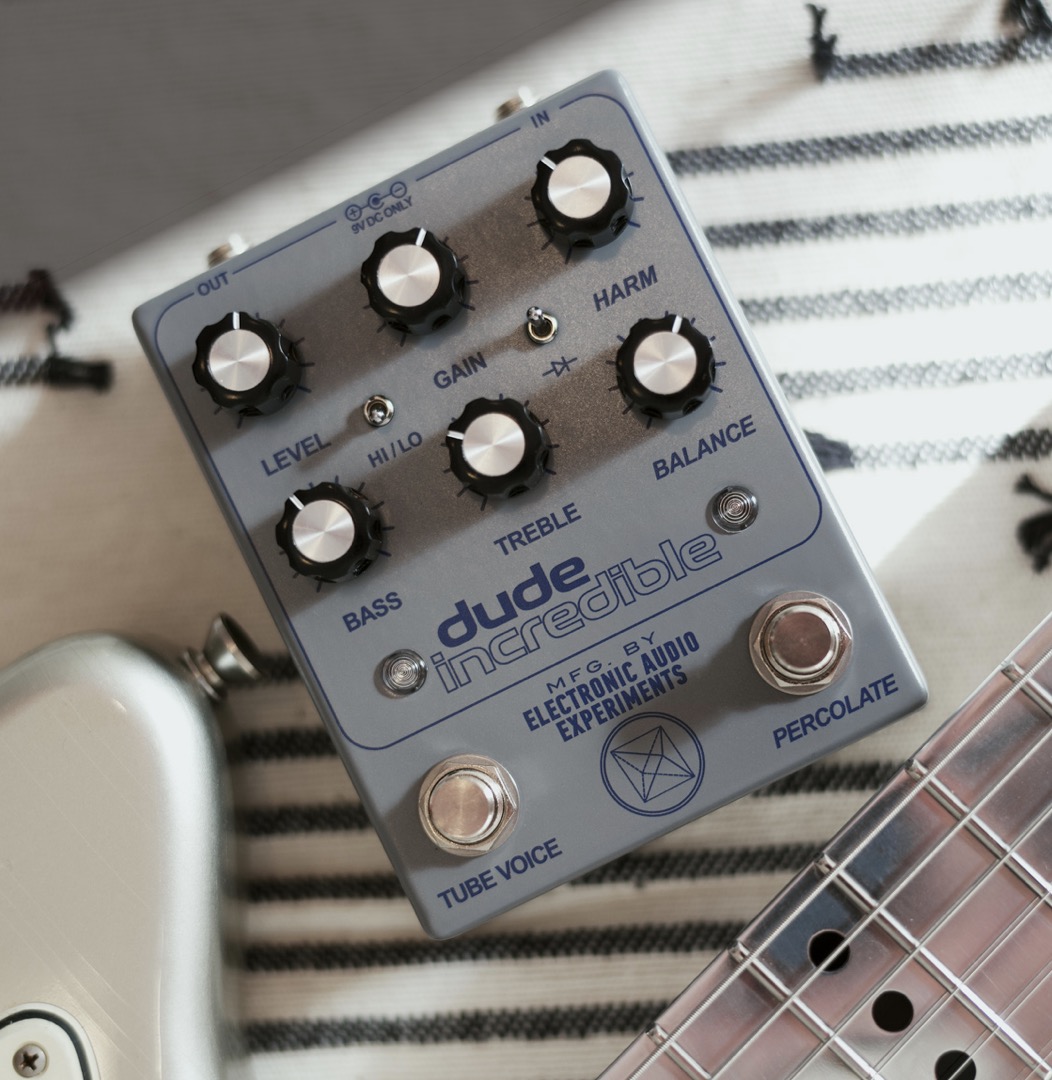

Electronic Audio Experiments Dude Incredible

Brands:

$299.00

The Dude Incredible V2 is a pairing of two cult classics: the IVP “Tube Voice” preamp and a percolator-style fuzz. Together, these two circuits have produced some of the most iconic guitar sounds in noise rock: jangly rhythm tones, ear-piercing treble chords, and endless walls of howling feedback.

Originally released in 2017, the Dude Incredible was the first adaptation of the IVP into a pedal format. Now, it returns with some extra features and modern reliability improvements.

The Tube Voice channel is the streamlined version of the Intersound IVP (aka Instrument Voicing Preamp), a nearly-forgotten rackmount preamp from the 1970s. The transformer-loaded overdrive circuit is driven by a pre-gain shelving EQ for a distinctive palette of frequency-selective distorted sounds. Far from just a clang machine, this channel is fantastic for medium gain tones or as an always-on base layer. (This channel can also be found as a standalone unit in our Surveyor pedal.)

The Percolate channel needs no introduction. EAE's take on this beloved two-transistor fuzz features a painstakingly selected germanium transistor based on measurements of an original unit. We also added a diode switch to select between our custom configuration found in the Dude Incredible V1 and a more traditional highly compressed mode. Combining the Percolate side with the Tube Voice side produces a devastatingly destroyed fuzz.

Even if you aren’t a metal-pick-wielding treble fiend, the Dude Incredible is a source of unique distortion sounds that can’t be found anywhere else.

Controls

  • Harm: Input gain for the Percolate channel.

  • Balance: Output level for the Percolate channel.

  • Gain: Tube Voice gain control; highly interactive with the Bass and Treble settings.

  • Level: Output level control, turn clockwise for more volume.

  • Treble: Tube Voice high shelf boost/cut, +/-12dB @ 3kHz located pre-Gain.

  • Bass: Tube Voice low shelf boost/cut, +/-12dB @ 100Hz located pre-Gain.

  • Diode (toggle): changes the clipping configuration of the Percolate channel. Up for less compression, down for more.

  • Hi/Lo (toggle): changes the gain range of the Tube Voice channel. In the Lo setting the gain range is -15dB to +12dB, in the Hi setting the gain range is +9dB to +36dB.

  • Right footswitch: Engages the Percolate circuit

  • Left footswitch: Engages the Tube Voice circuit

Changelog

Version 2

  • New mechanical form factor

  • Added soft-touch relay bypass

  • Component tweaks to the Percolate side for an overall “nastier” sound

  • Added diode toggle and new clipping modes to the Percolate side

  • Updated Tube Voice side with Hi/Lo toggle (to match Surveyor V2)

  • Added over-voltage and ESD protection for the power supply

Version 1

  • Original release

Electrical Specifications

Bypass Switching: Independent fuzz and preamp circuits with relay-based true bypass switching which defaults to bypass in the event of power loss.

Input impedance @ 1kHz: 100kΩ (perc) / 500kΩ (tube voice)

Output impedance @ 1kHz: <25kΩ (perc), <5kΩ (tube voice)

Power: 9VDC, 2.1mm center negative barrel. The current draw is 90mA with both channels engaged.

We recommend a regulated, isolated power supply rated for 100mA. Dude Incredible does not accept a battery. The power input is protected from reverse polarity and over-voltage conditions up to 24V.
