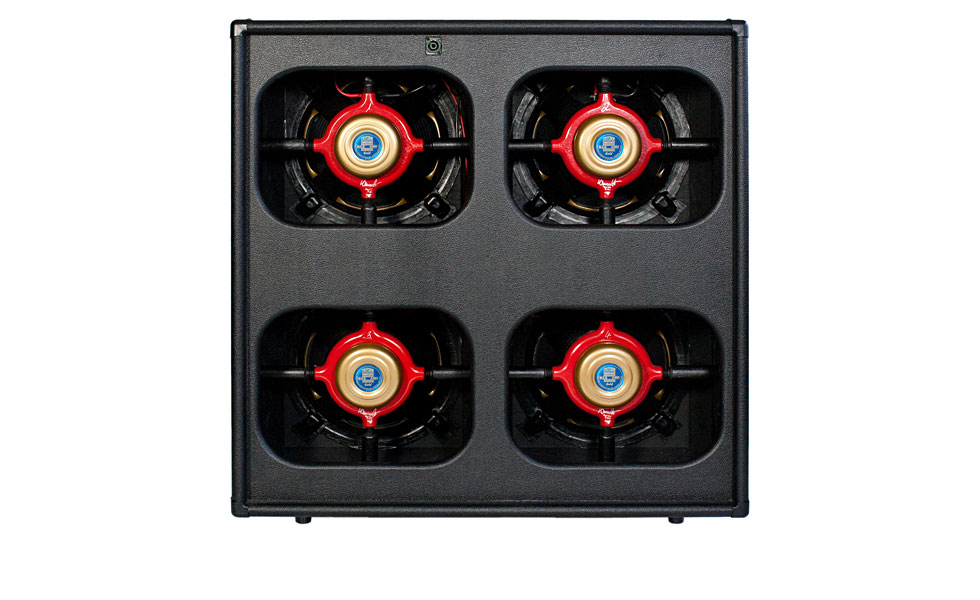

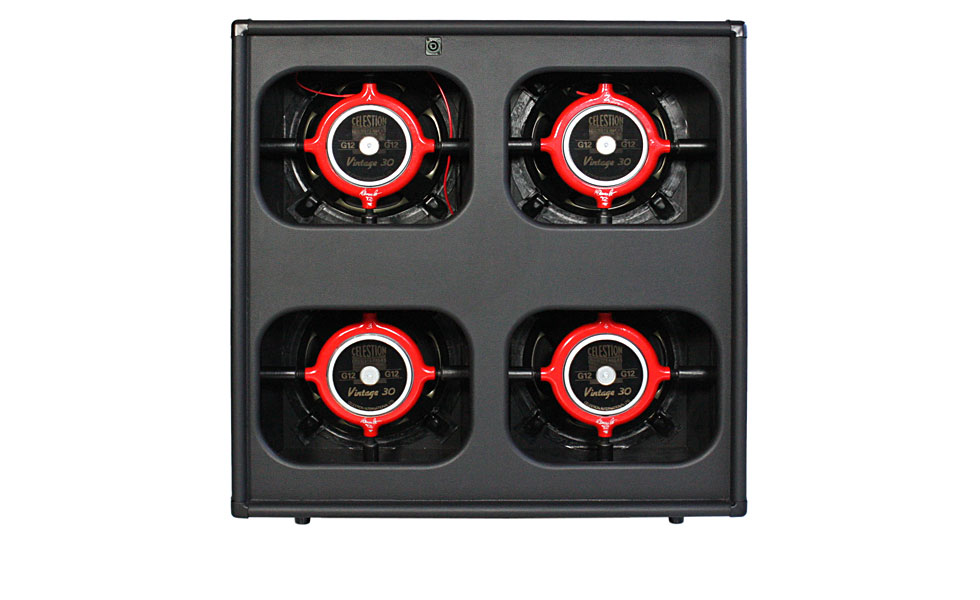

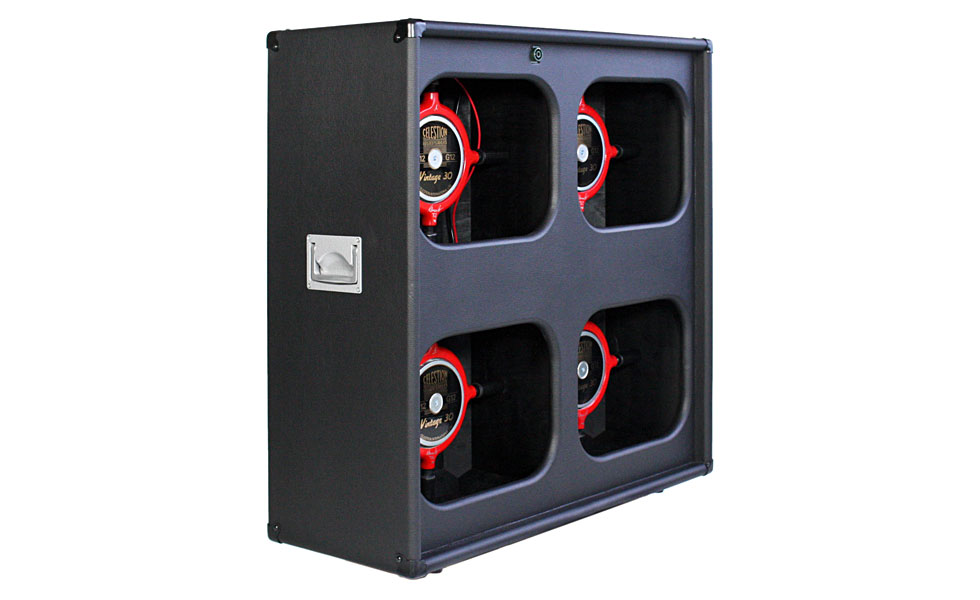

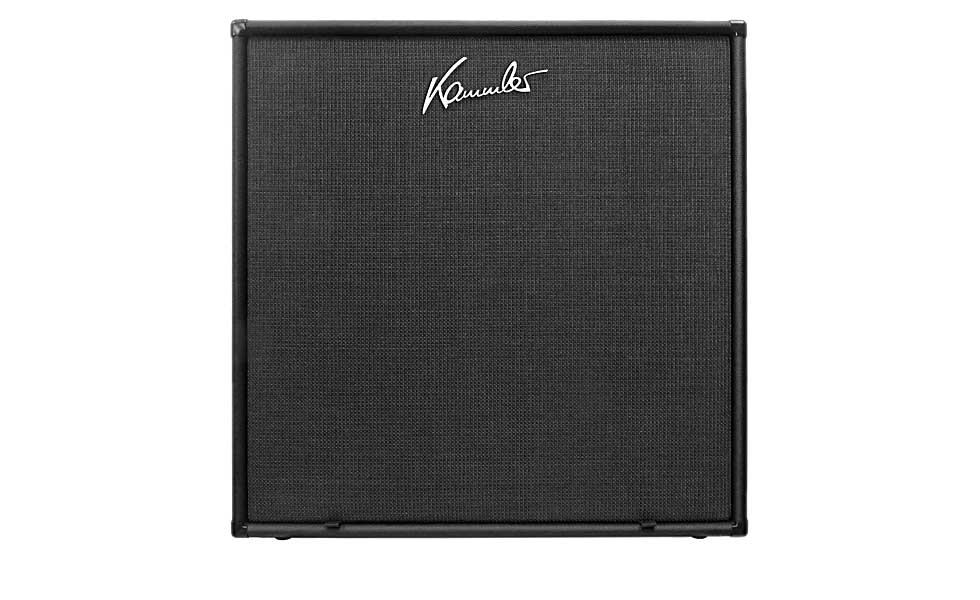

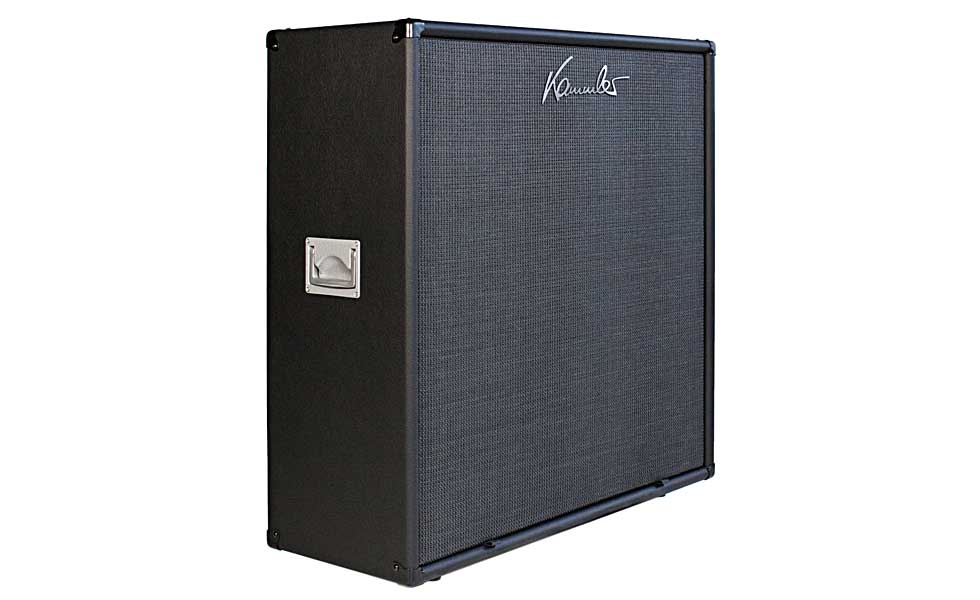

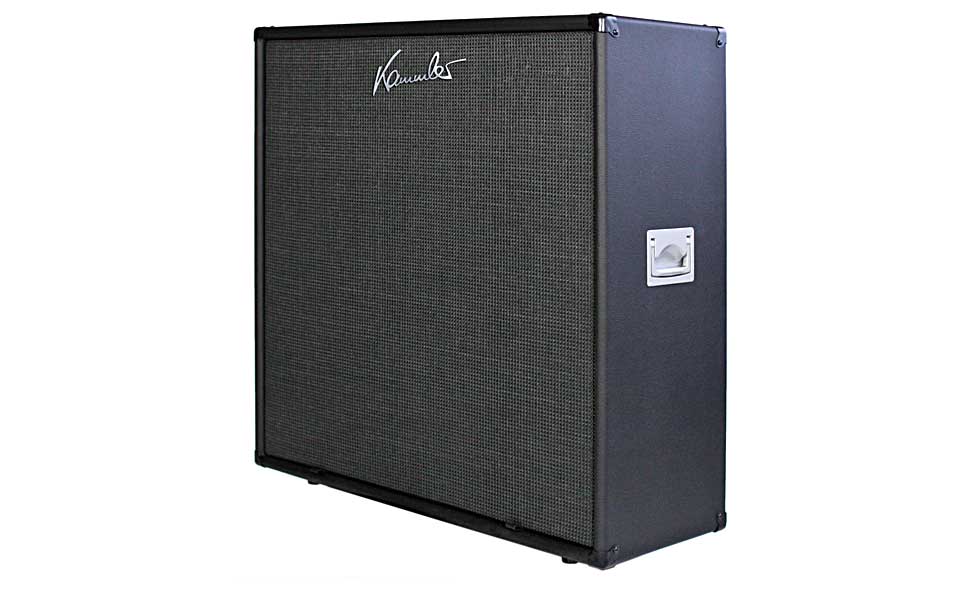

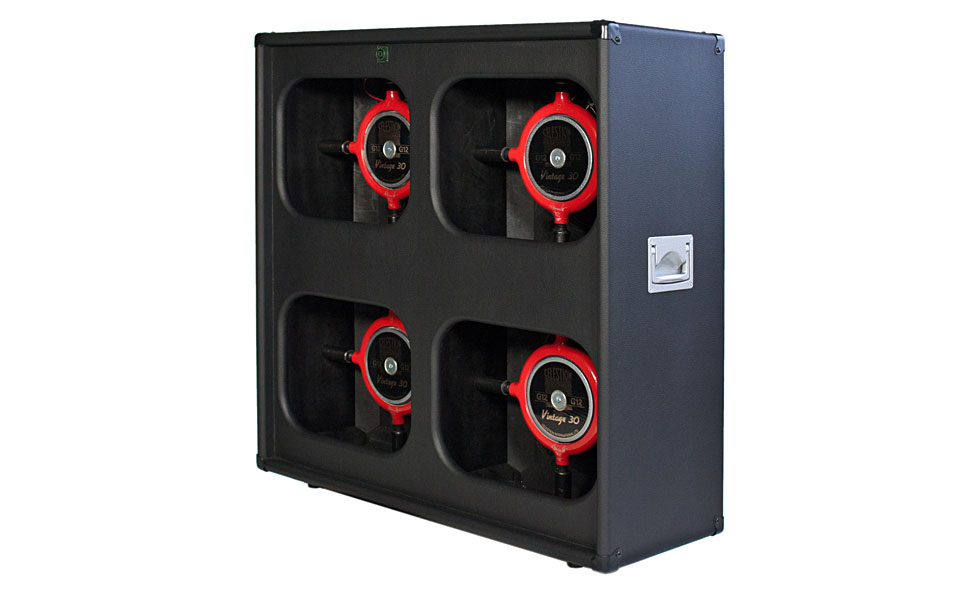

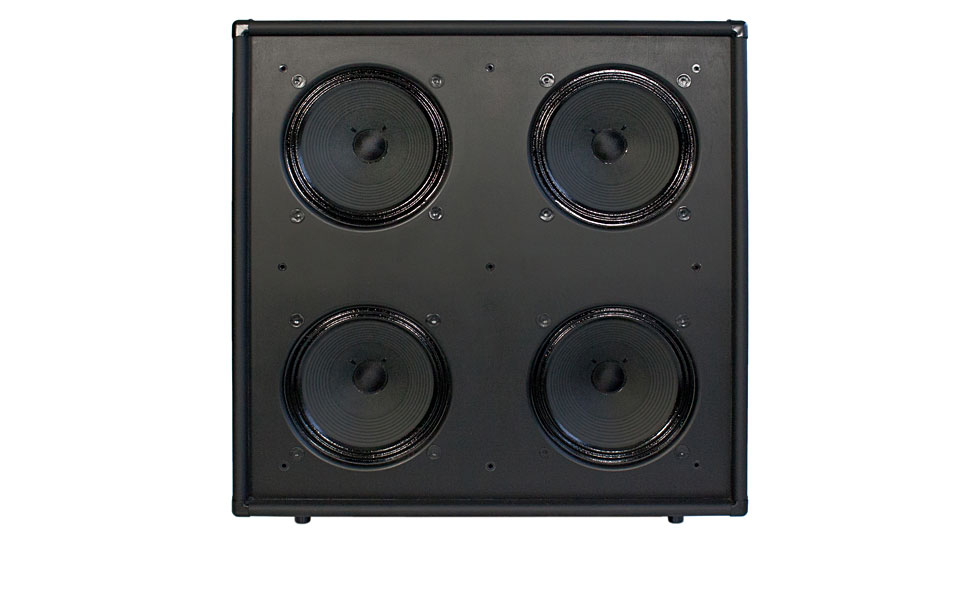

Kammler Ty-Foon 4x12" cabinet

The development of a powerful and punchy spatial sound.

This 4×12 cabinet has, in every aspect, been finished in a unique and uncompromising way: Four ‘compartmentalised’ speakers fitted with a ‘Tunator’ develop an almost unbelievably precise tangible world of sound. Whether ‘dirty’ or ‘clean’, with the appropriate speaker you experience a new dimension in the category of 4×12 guitar cabinets. The extremely elaborate craftsmanship involved in making these cabinets means that you:

• minimize the transfer of kinetic energy to another speaker.
• benefit from a more uniform overall vibration behaviour of the cabinet.
• benefit from an accurate overall playback and transparency of the tone during high sound pressure levels.
• benefit from enormous responsiveness in the playback of the tones/chords.
• ensures a stable sound behavior at highest volume levels.

After delivering the prototype, we decided to produce a proto-run of only 12 Ty-Foon Cabinets in 2014.  The reaction has been overwhelming. With the 3-way mono/stereo inputs (optional) the Ty-Foon can be powered by 2 amps.

<Video of Tunator concept>

Technical Details

Connection: Speakon combo connector (jack amp to Speakon/jack cabinet).
Alternatively: 3 Jack Input for stereo/mono operation.
Speaker: 4×12” Celestion Gold or Blue Bulldogs.
Alternatively: Celestion Vintage 30; Tone Tubbies; Scumbacks or Custom Options.
Impedanz: Depending on performance requirements from 16 to 4 Ohm.
Dimensions: 88x88x32 cm (H/W/D).
Weight: approx. 58 kg. (with Gold/Blue Bulldogs).
Cover: Black (Standard) or custom options.
Corners: Metal in black/sandblasted chrome.

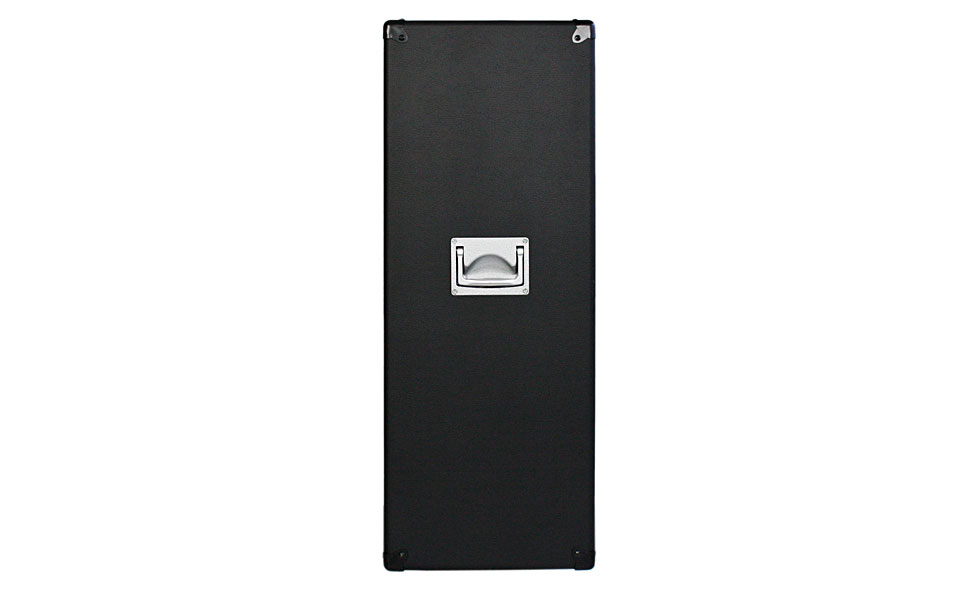

Handle: Stoppable Folding Tray Handle.
Grill: Basket in black/gris/wheat or custom options. Removable!
Feet: Selected hard rubber feet and ‘Pop-In/Out’ casters.

Note: The factory setting for every Ty-Foon depends on individual requirements!
For ‘High Performance Operation’ casters should be removed!

Custom Options:

• Speaker or speaker combinations.
• Connection with 3-jacks for stereo/mono operation with 1 or 2 amps.
• Load capacity from 100 – 400 watts.

** Please NOTE: The version we have in stock includes with 2x12“ Celestion AlNico Gold Bulldog Speaker (50 W/16 Ω each) and 2x12“ Celestion AlNico Cream(90 W/16 Ω each).  Cab has the Stereo/Mono/Stereo Option: 3-way circuit 8-16-8 Ω. Covering is Std. Black Tolex, Front is Black Basket with No Corners.

_________________________________

Don't get me wrong, while these cabs are very expensive, they are truly life changing.  My mind was completely blown when i demo'd them at NAMM in 2017.  For studio or stage, they are more or less essential equipment.

** Please note we do not stock the entire line-up of cabs in every configuration, but we can custom order whatever you wish.
