Montreux Premium Cable "Arena-3SS"
Brands:
$80.00
** Please note if you are buying any new pedal, guitar or amp valued at over $100, and you can add on any in-stock Montreux Cable products at 25% off. I don't have automated checkout set up for this special deal, so please just drop me a quick email detailing your shipping address and what items and whichever cables you want and I will get back to you with a total and payment instructions ASAP.

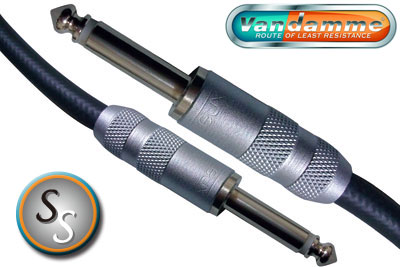

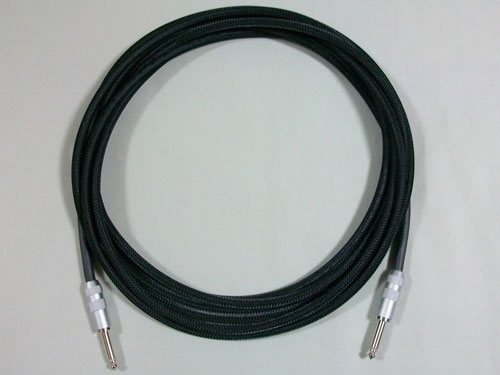

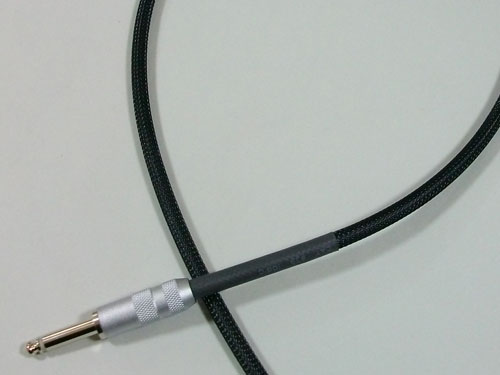

Montreux Premium Cable "Arena-3SS" is a 3m long cable with straight to straight plugs.
Montreux Premium Cable by Van Damme U.K. is a great new cable with a high quality spec. The Arena series looks are great as it sounds!
| Specifications: | ||
| Conductor | Material | Bare silver plated ultra pure oxygen free copper wire |
| Stranding | 3 x 0.20mm | |
| Material | Bare ultra pure oxygen free copper wire | |
| Stranding | 4 x 0.20mm | |
| Insulation | Material | Foamed Polyethylene |
| Diameter | 1.60mm ±0.10 | |
| Screen 1 | Type | 0.40mm conductive thermoplastic |
| Screen 2 | Type | 80 x 0.10mm close lapped oxygen free copper wire |
| Jacket | Material | Flexible PVC/Neoprene composite |
| Average thickness | 1.70mm | |
| Overall diameter | 6.00mm ±0.15 | |
| Physical properties unaged | ||
| Jacket (at 60ºC) | Tensile strength | >8N/mm2 |
| Elongation | >250% | |
| Heat shock test | 120 ºC x 1 hour - no cracks | |
| Test voltage | 1000 Vdc x 1 minute OK | |
| Electrical characteristics | ||
| Resistance | Conductor Ohm/Km | <47 |
| Insulation M Ohm/Km | >5000 | |
| capacitance | Core to shield pF/m | <90 |
