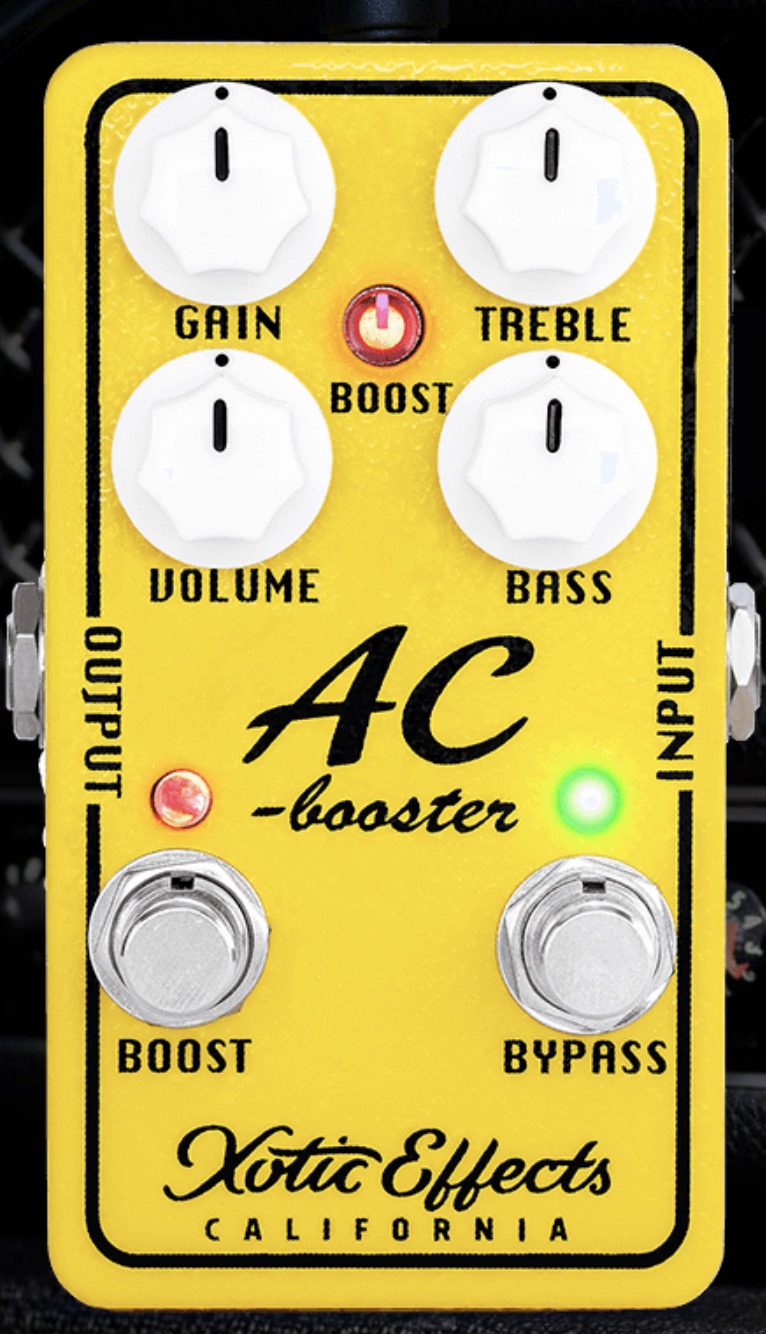

Newly designed AC Booster V2 offers a wide range of overdrive with touch sensitivity.
Reacting exactly like a great tube amp, the newly designed AC Booster V2 offers a wide range of overdrive with touch sensitivity just like the original AC Booster.
You can set it up to get a crunchy warm overdriven tone and with just a little rolling off of the guitar’s volume, it will give you a great clean sound.
Specs:
- Dimensions (W/D/H): 4.39″ x 2.38″ x 1.98″ (110mm X 60mm X 50mm).
- Weight: 0.6 lbs. (270g)
- True Bypass Switching Power Consumption: 9VDC/10mA (max) Approx. 40hrs continuous use with alkaline battery Battery Type: 9VDC (006P) x 1 AC Adapter
- (Optional): 9-18VDC Negative Tips
- (Regulated Only) Boss PSA, Dunlop Brick, Voodoo Labs, Input Impedance: 1M ohm Output Impedance: 2K ohm.
- Input Jack Nominal input -20dBu Unplug when it’s not in use for a longer battery life.

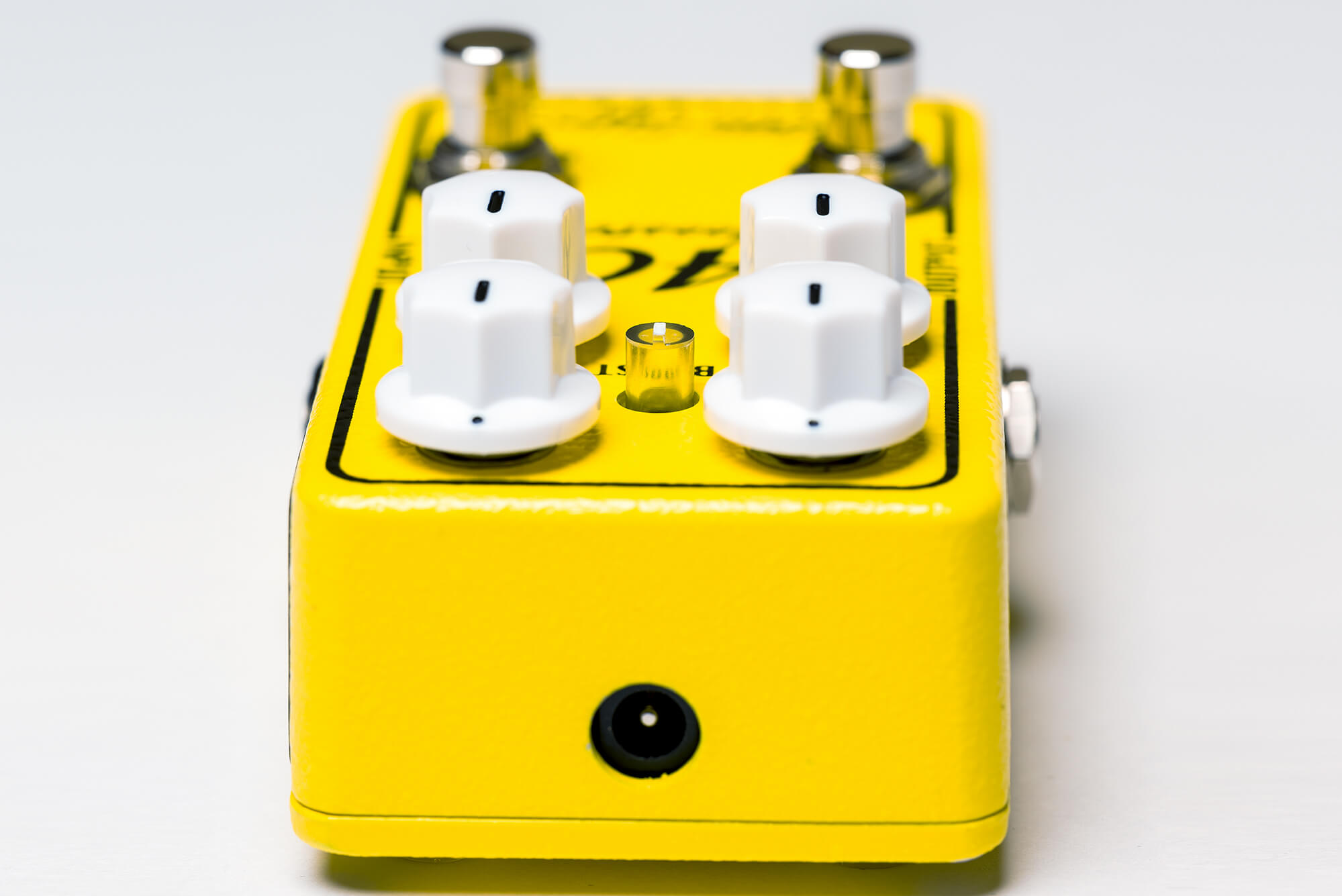

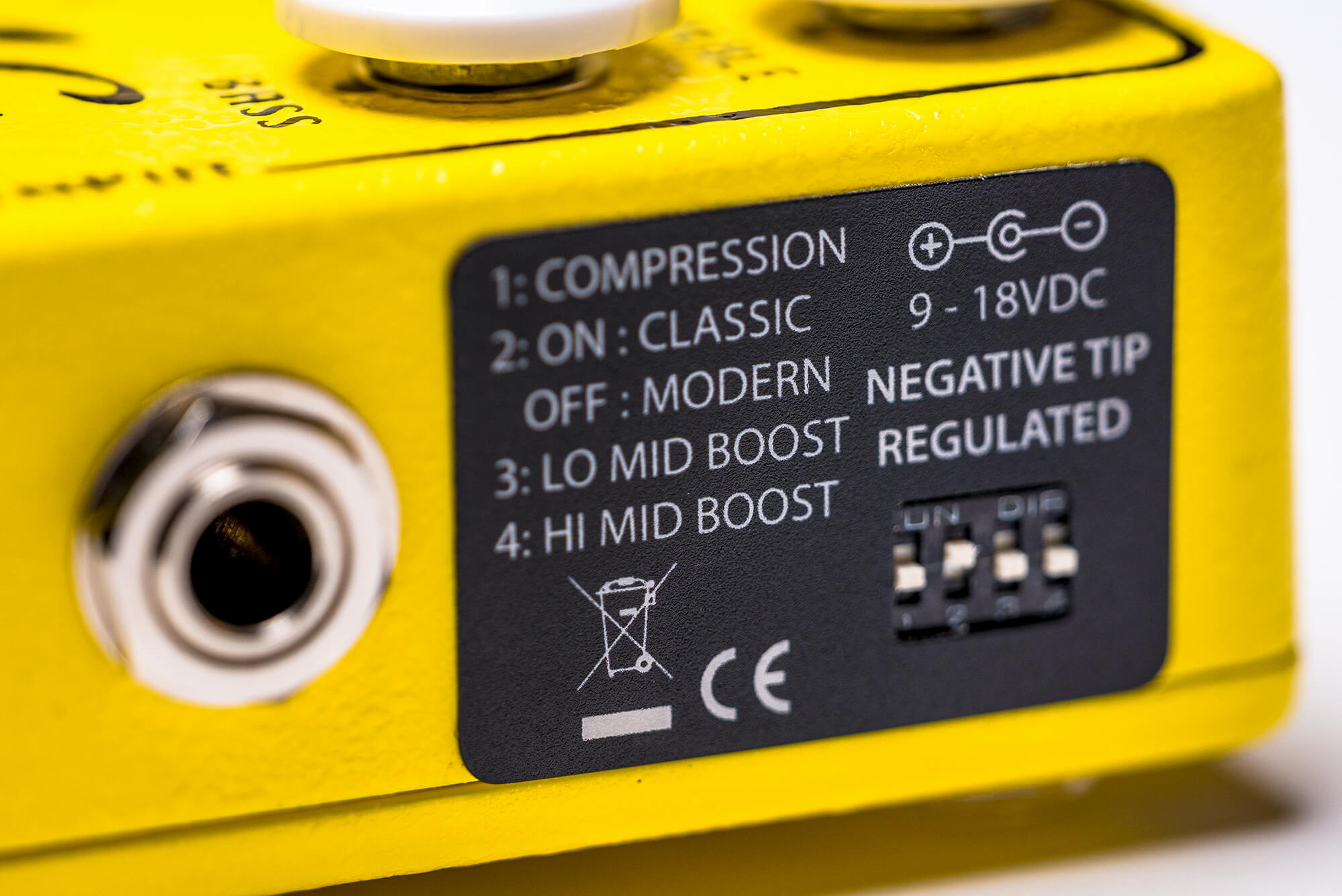

- DC Jack: 2.1mm x 5.5mm 9 – 18VDC – Negative Center Regulated Only.
- When an external power supply is used, the battery is disconnected from the circuit.
- Remove four screws from the bottom plate to access battery.
