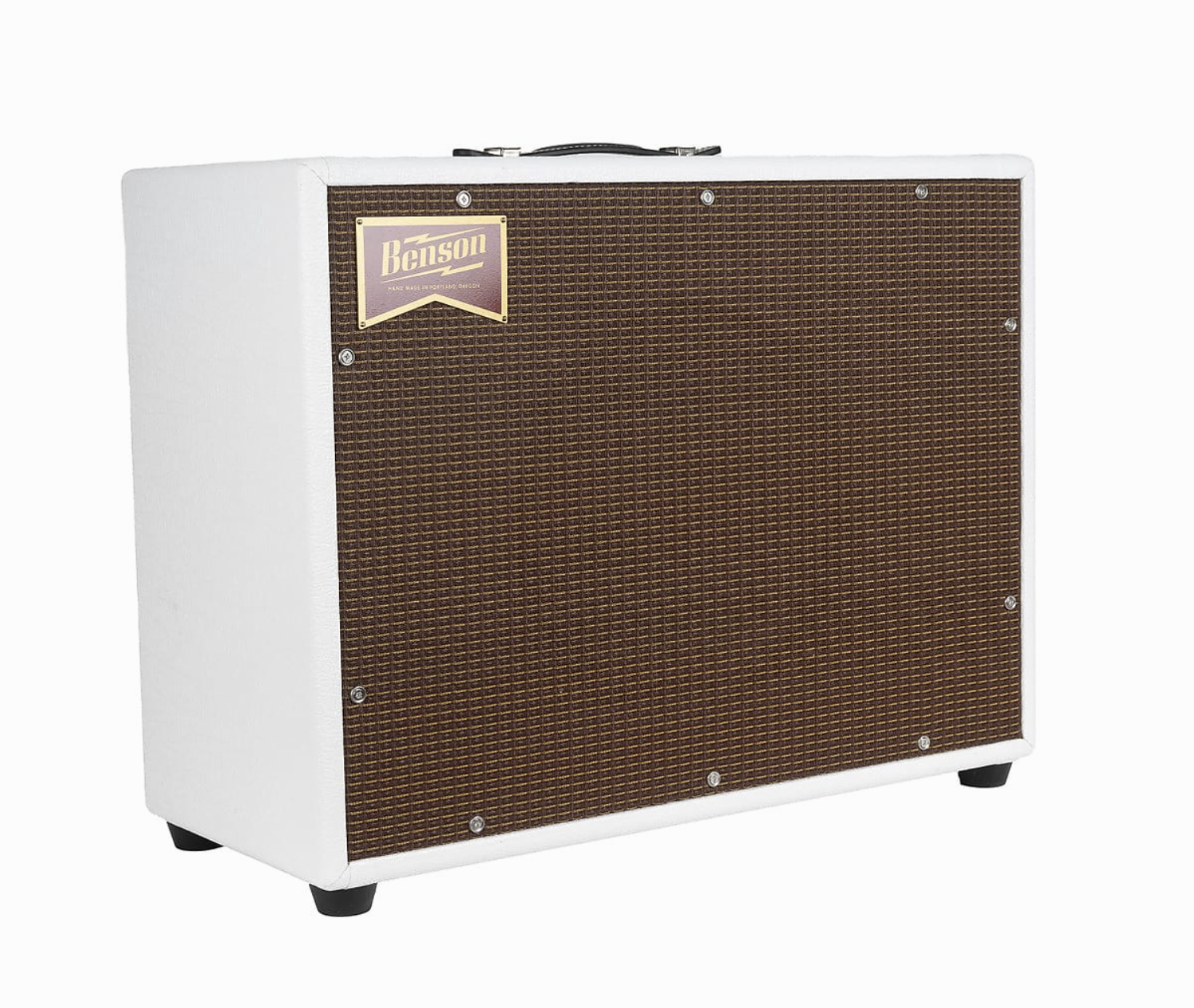

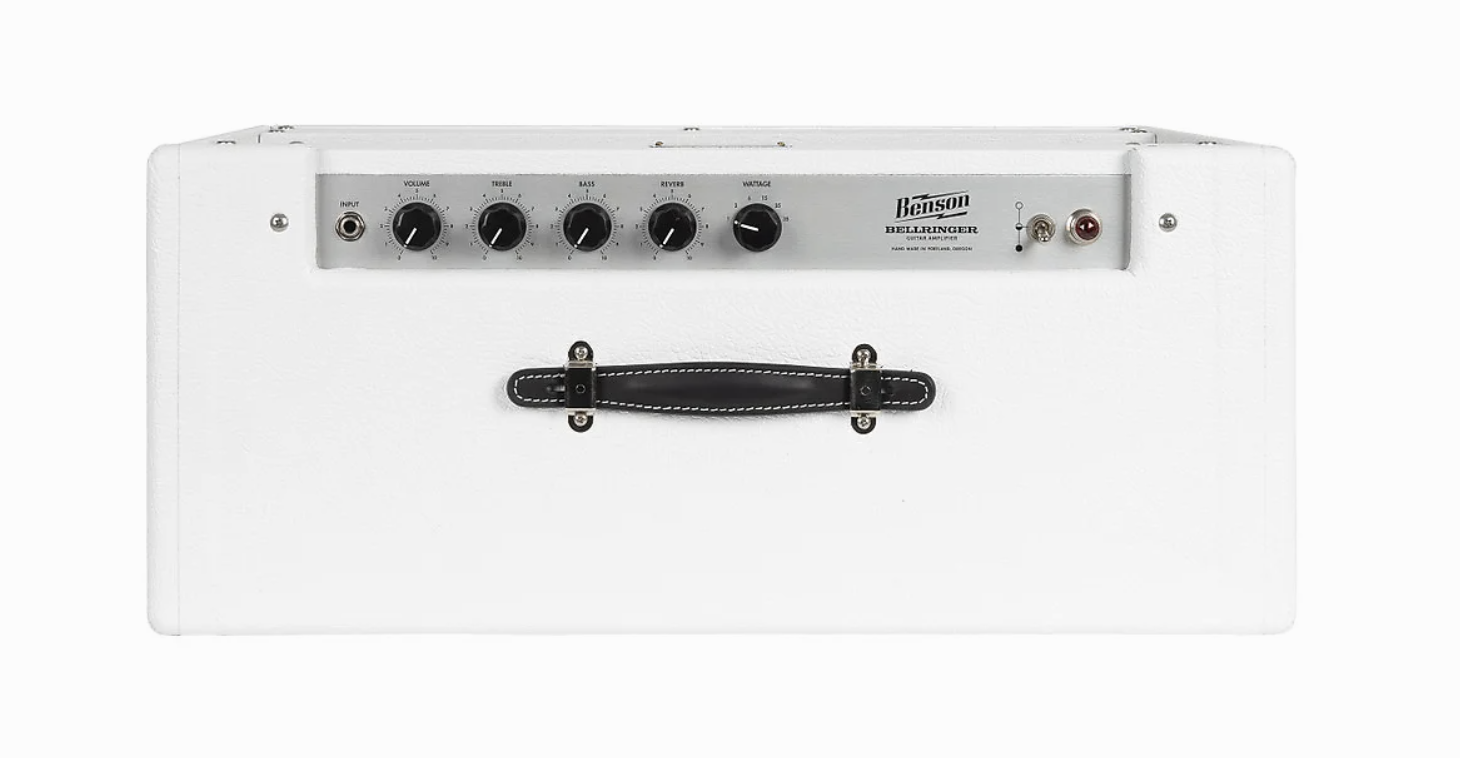

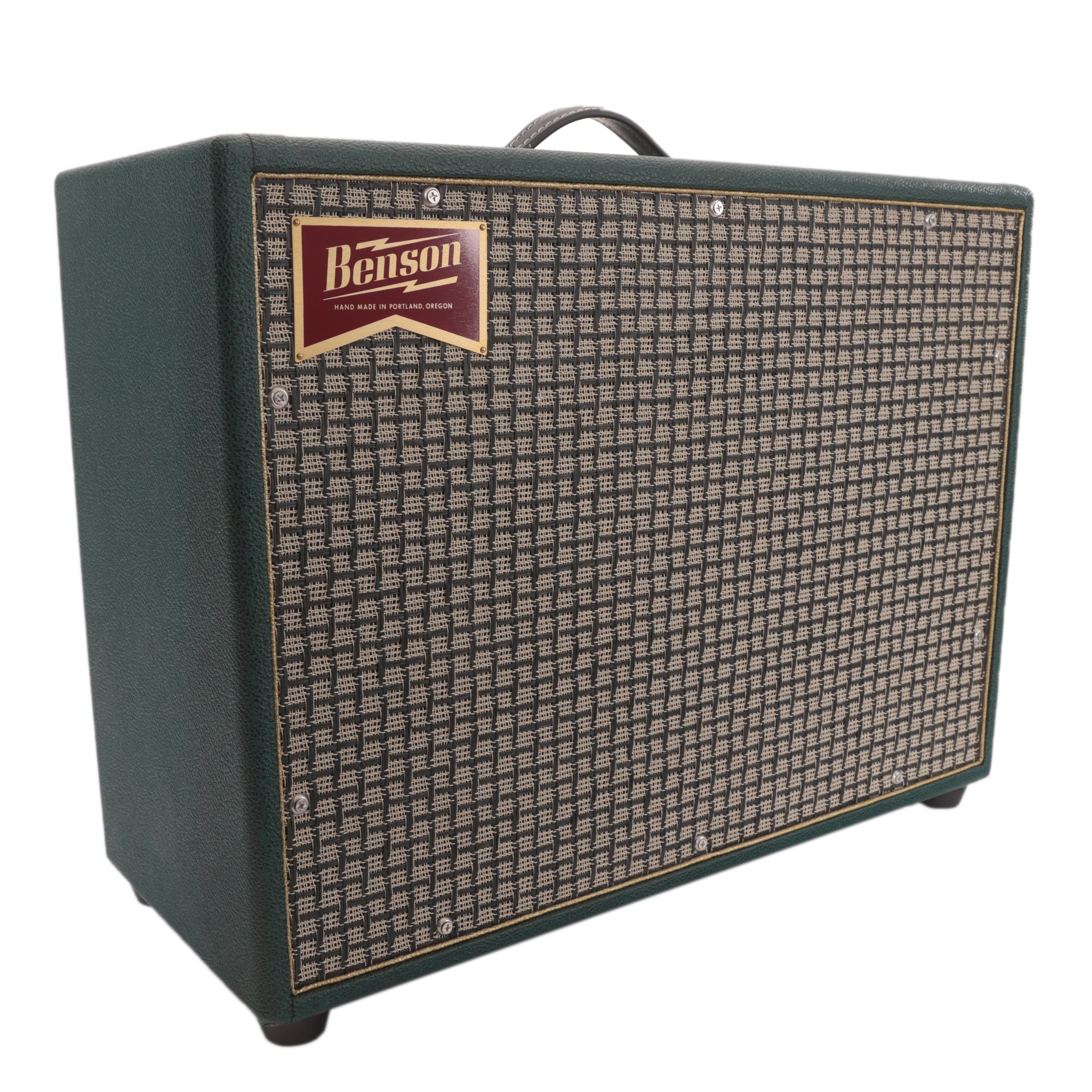

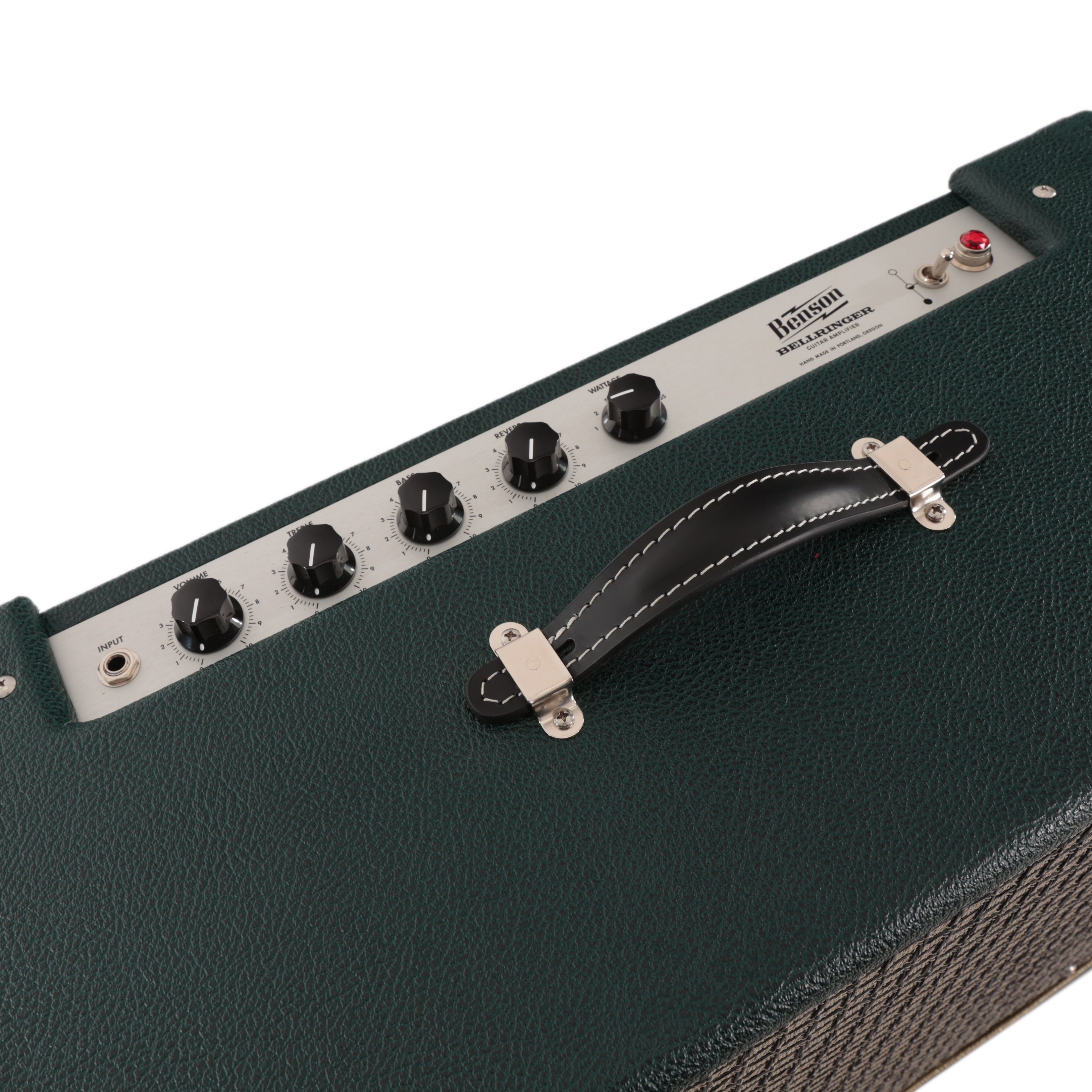

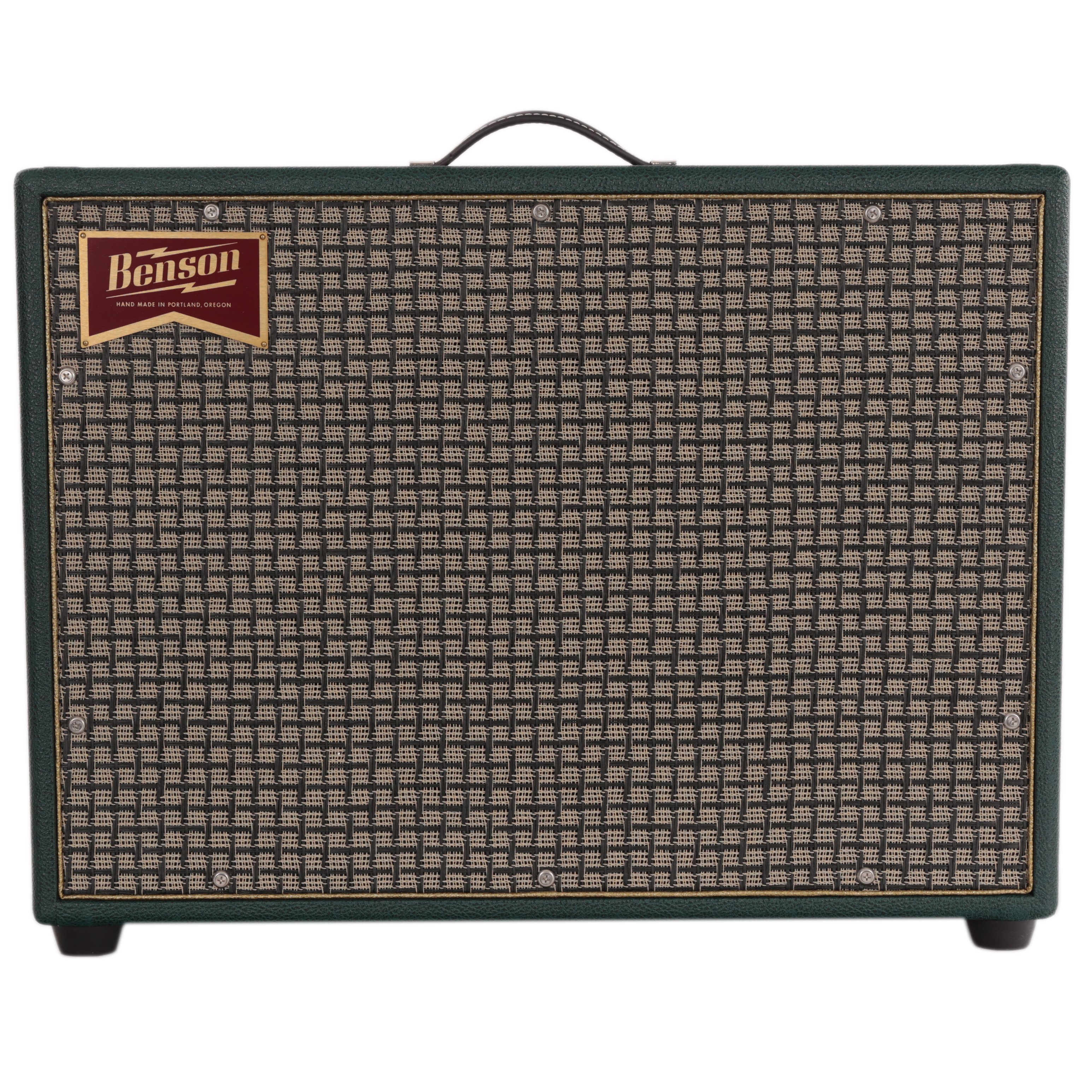

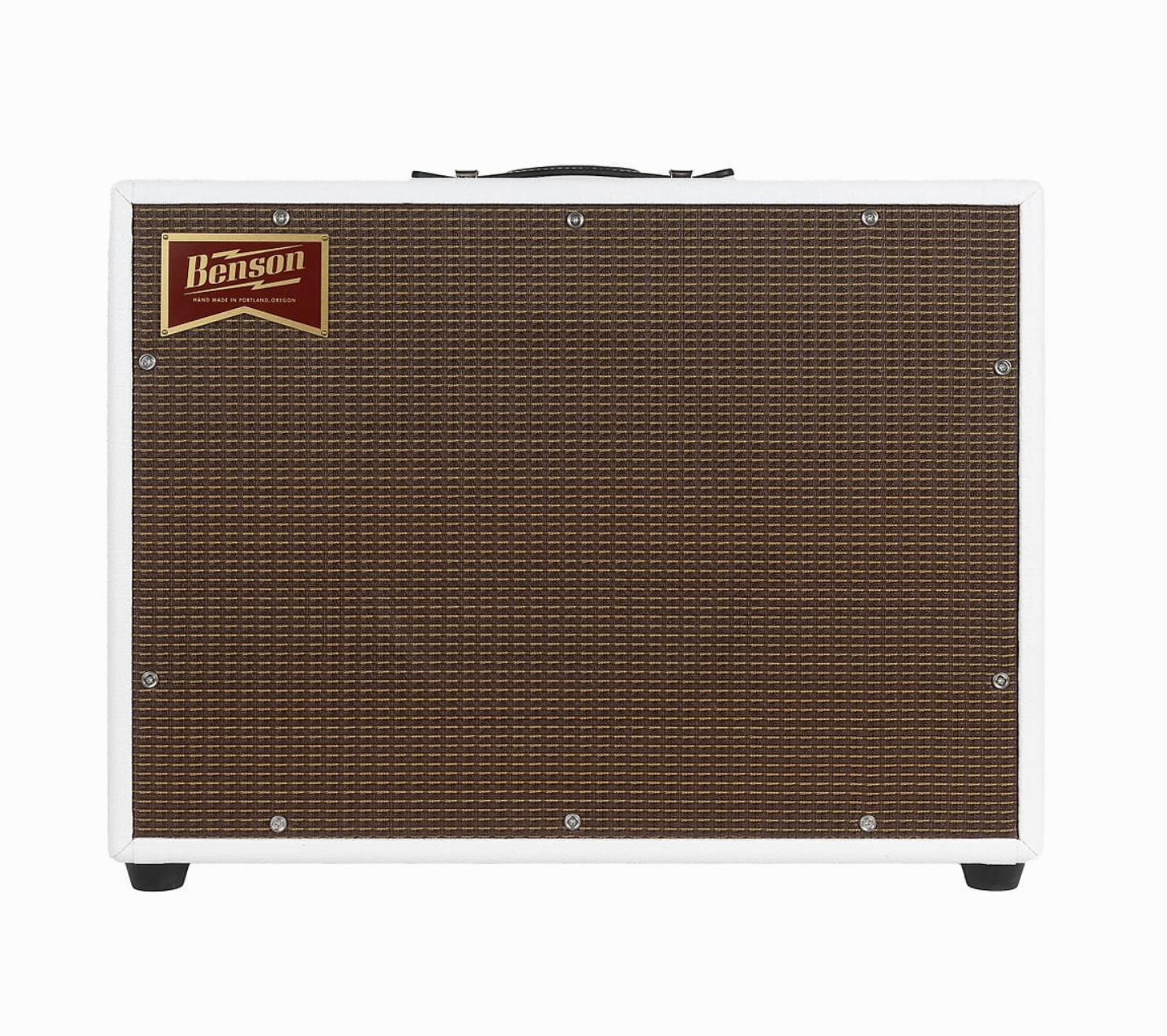

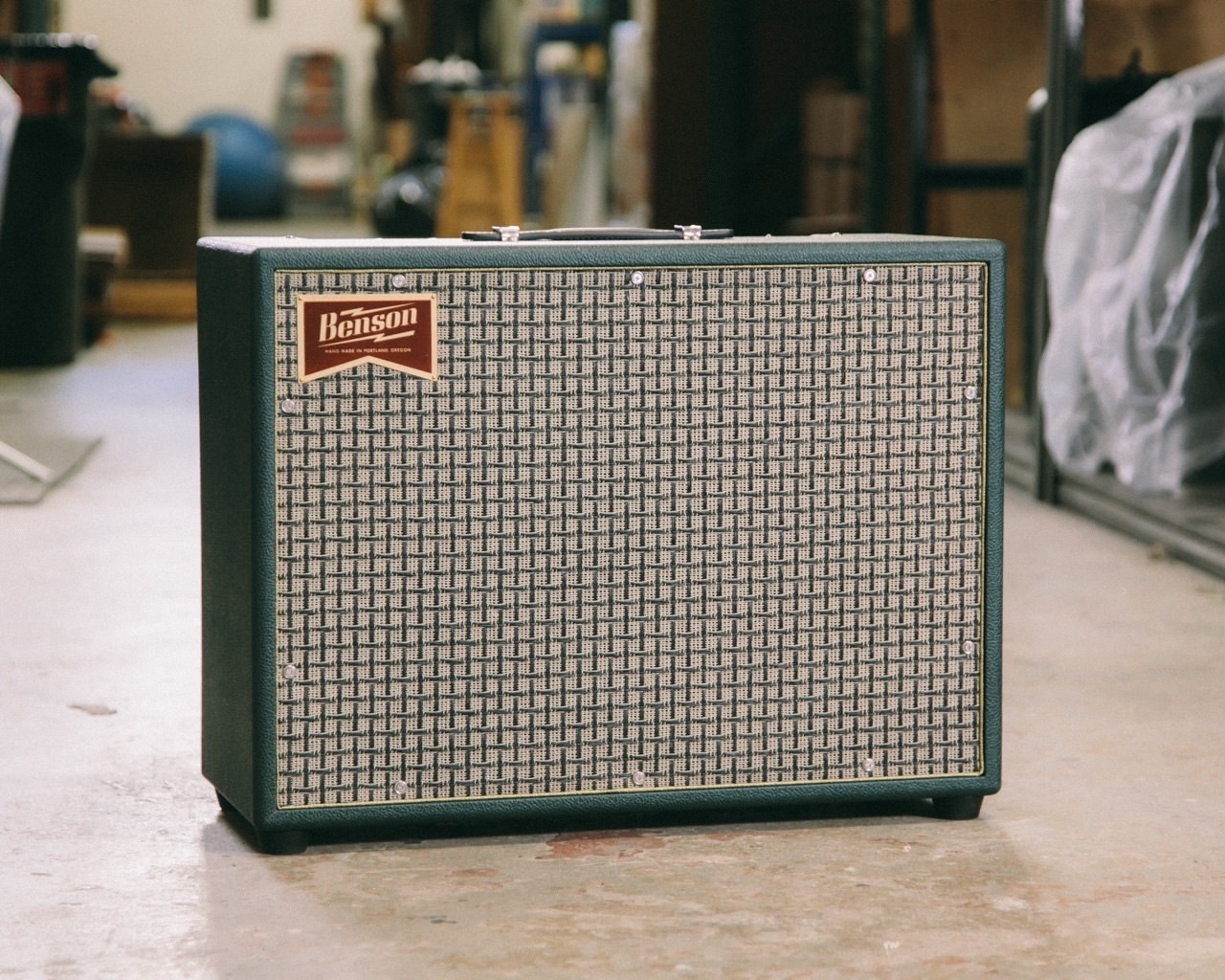

Benson Bellringer 35W 1x12" Tube Combo Amp
Brands:
Meet the Bellringer, Benson's fresh take on the Chimera circuit with the notable addition being the Power Scaling circuit. They use a 6L6 as a variable voltage regulator which allows you to dial the amp from the full 35 watt capacity down to 1 watt and introduces the sag and harmonic richness of a cranked amp at lower volumes… not to mention extra saturation and subtle fuzz at lower volumes. The Bellringer is powered by a pair of EL34 tubes as opposed to the Chimera’s quad 6V6 setup.
Specs
-

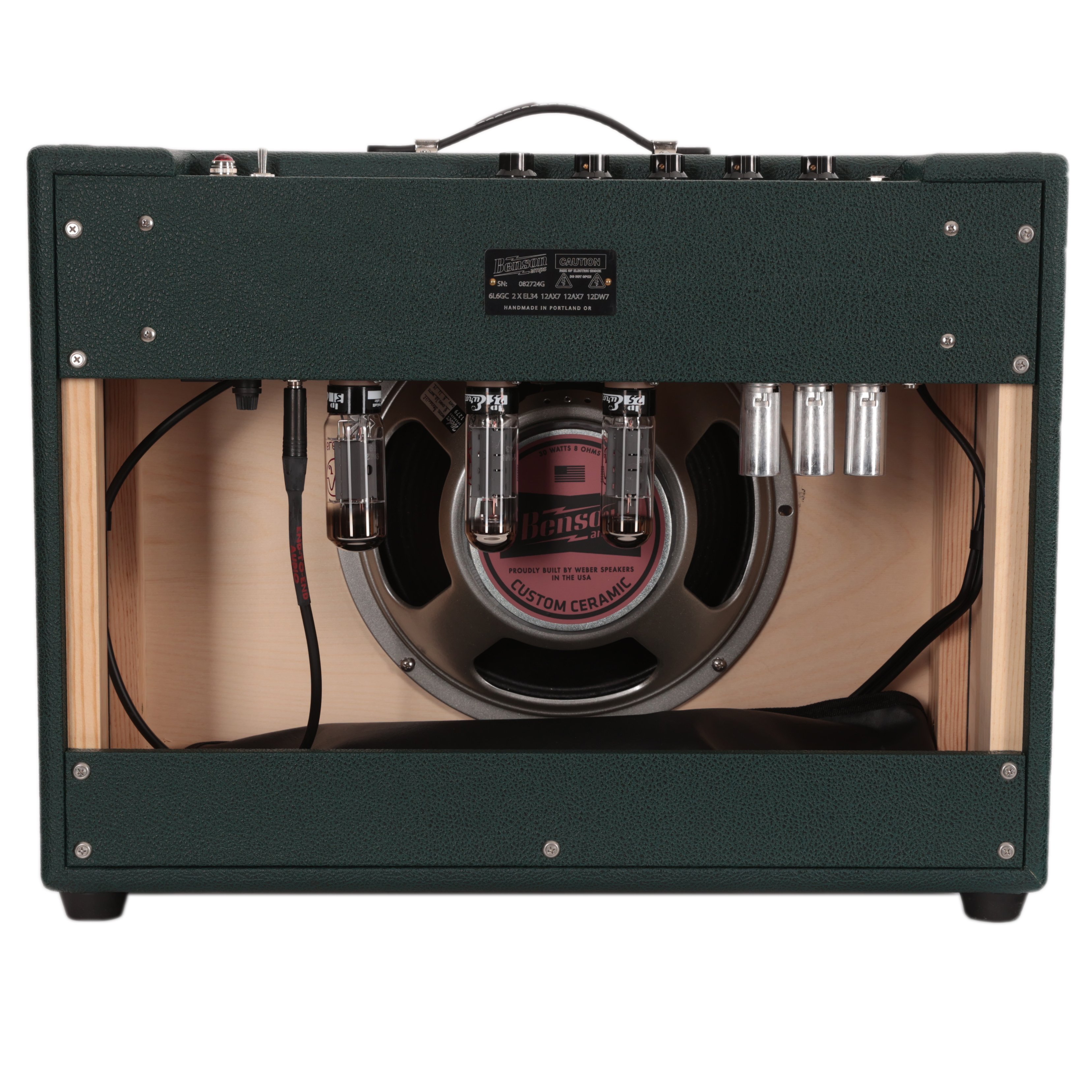

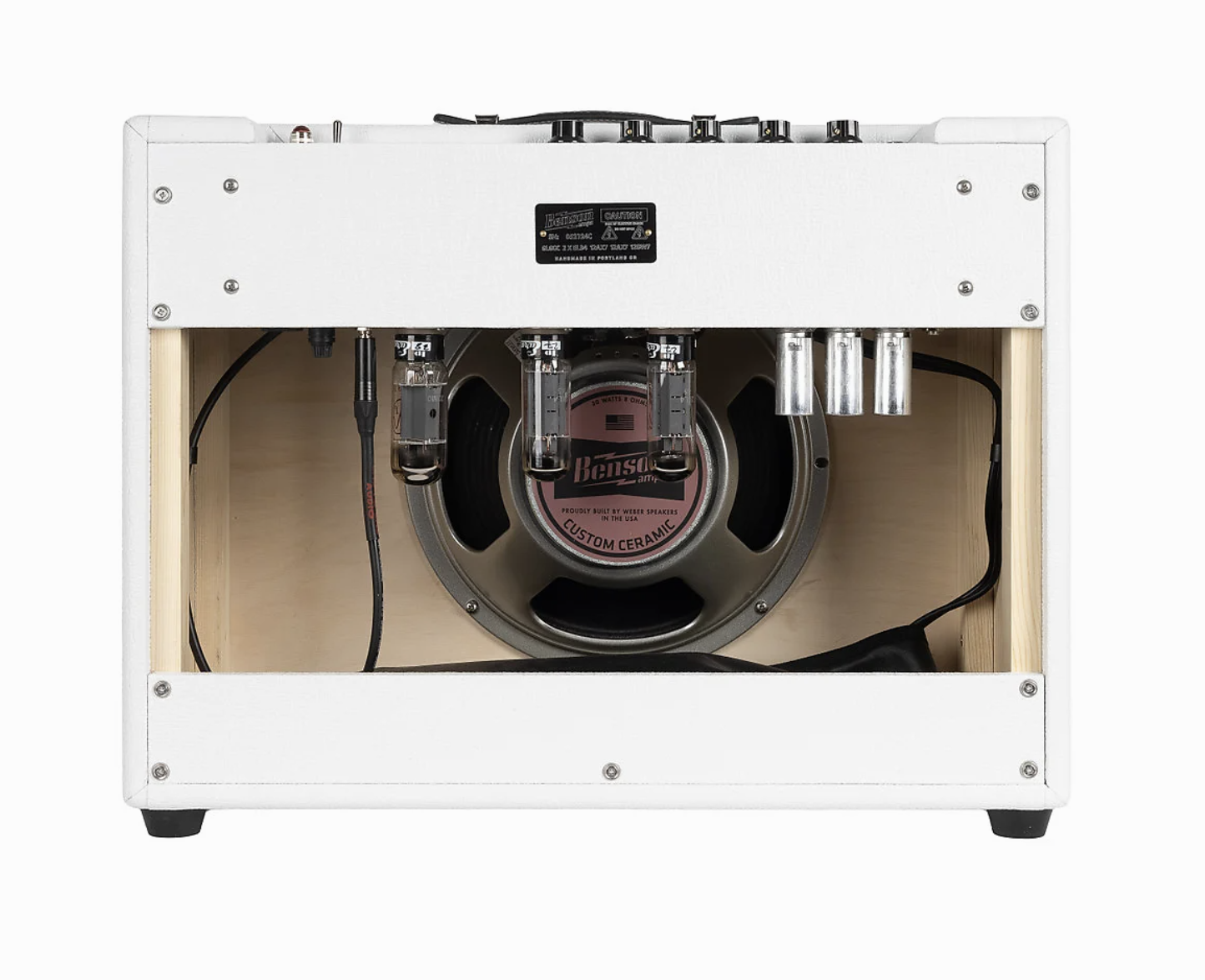

2 X JJ EL34, 2 X JJ 12AX7 preamp tubes, JJ 12DW7 reverb driver, and JJ 6L6GC set up as voltage regulator for power scaling
-
35 watts
-
Speaker outputs: 1x12 8 ohm
-
Foot switchable reverb
Dimensions/weight
-
1x12 combo: 23.5”W 17.5”H 10”D, 39 lbs
-
2x12 combo: 27"W 20"H 10"D, 50 lbs
Build
-
Point to point construction on terminal strips - no circuit, eyelet, or turret board
-
Custom Sours transformer set
-
Mallory 150 Capacitors
-
Dovetailed pine speaker cabinet
-
Benson Custom 30 Ceramic speakers
